BH1816-Y
BH1816-Y
BH1816-Y
Product Features:
1、Complied with ANSI standard, LM-80 certified
2、CRI>80 or 90
3、Light efficiency: 150lm/W(@3000K 80Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency
Product application:
Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places
Product Introduction
Related recommendations


Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CRI
Ra)

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

BH1816-0612

J25W**-YV3B

Φ14

25

700

1200

36

≥80

150

3780

≥90

128

3225

BH1816-0712

J30W**-YV3B

Φ14

30

800

1400

36

≥80

150

4320

≥90

128

3686

BH1816-0812

J35W**-YV3B

Φ14

35

950

1600

36

≥80

150

5130

≥90

127

4343

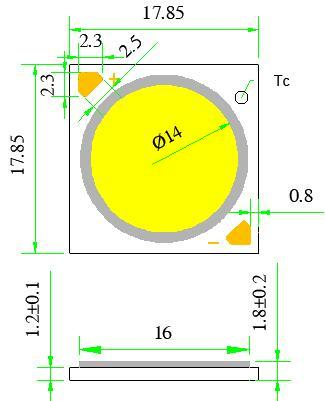

  Product dimensions

BH1816-Y


White bins on CIE-1931

BH1816-Y


Temperature Vs Lume:

BH1816-Y

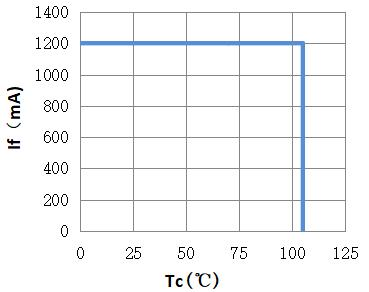

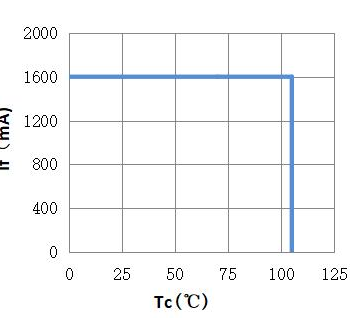

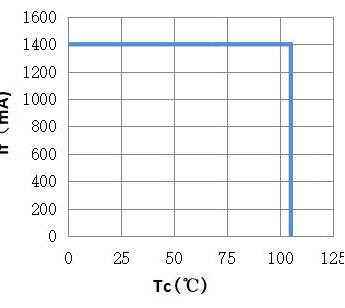

TC VS IF curve:

BH1816-YBH1816-YBH1816-Y

                           BH1816-0612                                               BH1816-0712                                            BH1816-0812

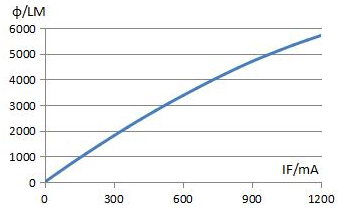

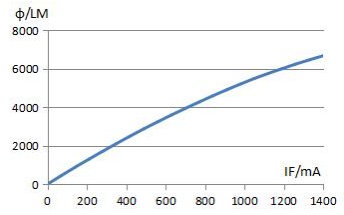

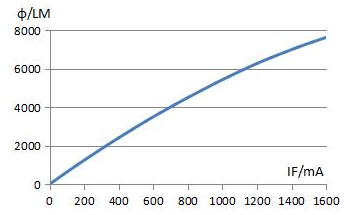

Current Vs Lumen:

BH1816-Y   BH1816-YBH1816-Y

                           BH1816-0612                                                 BH1816-0712                                                BH1816-0812


Voltage Vs Current:



BH1816-Y        BH1816-Y     BH1816-Y

                          BH1816-0612                                                 BH1816-0712                                               BH1816-0812
