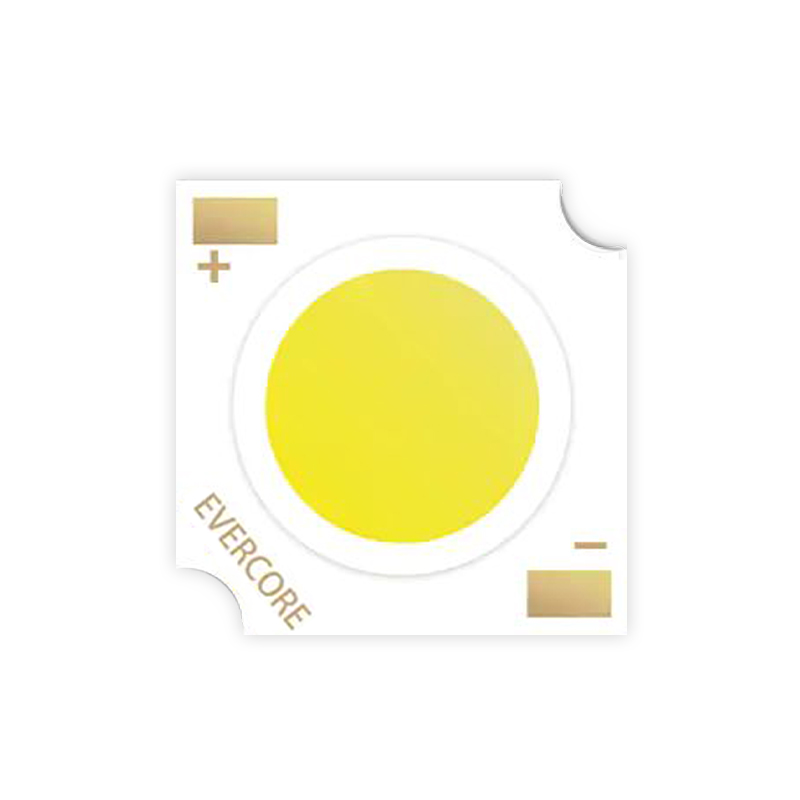

FH1917-Y
FH1917-Y
FH1917-Y
Product Features:
1、Complied with ANSI standard, LM-80 certified
2、CRI>80 or 90
3、Light efficiency: 150lm/W(@3000K 80Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency
Product application:
Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CRI
Ra)

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

FH1917-0512

J20W**-YV3B

Φ15

20

550

1000

36

≥80

150

2970

≥90

130

2574

FH1917-0612

J25W**-YV3B

Φ15

25

700

1200

36

≥80

150

3780

≥90

129

3250

FH1917-0812

J35W**-YV3B

Φ15

35

950

1600

36

≥80

150

5130

≥90

129

4411



  Product dimensions

FH1917-Y

White bins on CIE-1931

FH1917-Y

Temperature Vs Lume:

FH1917-Y

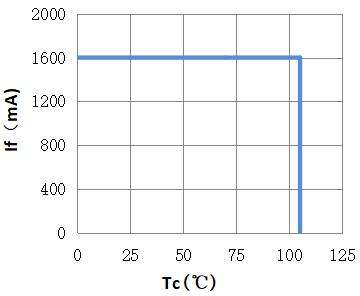

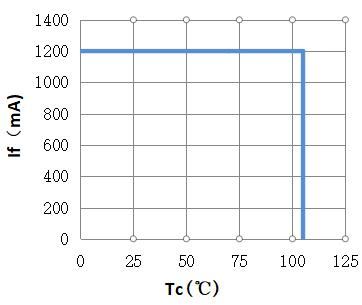

TC VS IF curve:



FH1917-Y             FH1917-Y            FH1917-Y

                          FH1917-0512                                                    FH1917-0612                                                         FH1917-0812

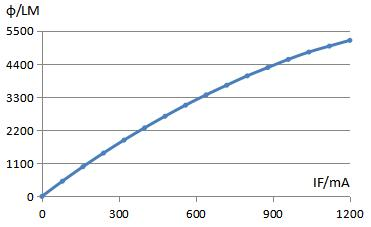

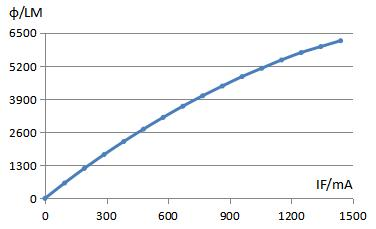

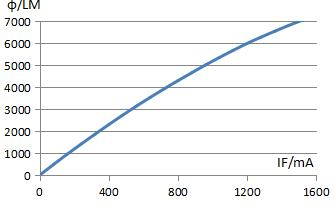

Current Vs Lumen:



FH1917-Y    FH1917-Y       FH1917-Y



                        FH1917-0512                                                    FH1917-0612                                                         FH1917-0812

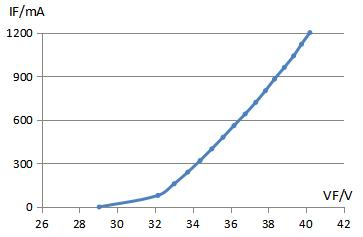

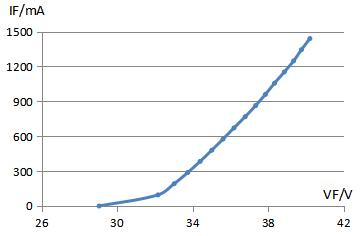

Voltage Vs Current:



  FH1917-Y           FH1917-Y             FH1917-Y



                          FH1917-0512                                                           FH1917-0612                                                       FH1917-0812
