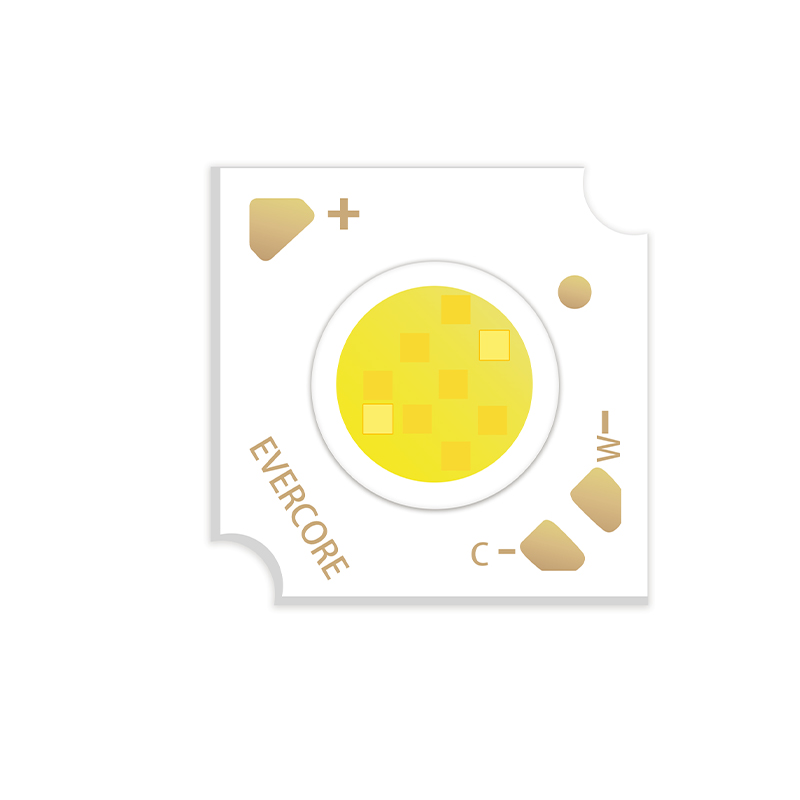

HK16105-V4
HK16105-V4
HK16105-V4
Product Features:
1、LM-80 certified
2、CCT tunable range from 2700K to 6000K
3、Ra>90
4、Light efficiency: 120lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、24/48V constant voltage input, automatic constant current
Product application:
Widely used for high-end hotels, smart homes, high-end commercial space and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Voltage Min
(V)

Voltage Max
(V)

CCT

(K)

CRI
Ra)

Light efficiency
(lm/W)

HK16105-0407

K12WLSH-V4

Φ9

12

24

27

2700K

≥90

86

12

24

27

6000K

≥90

102

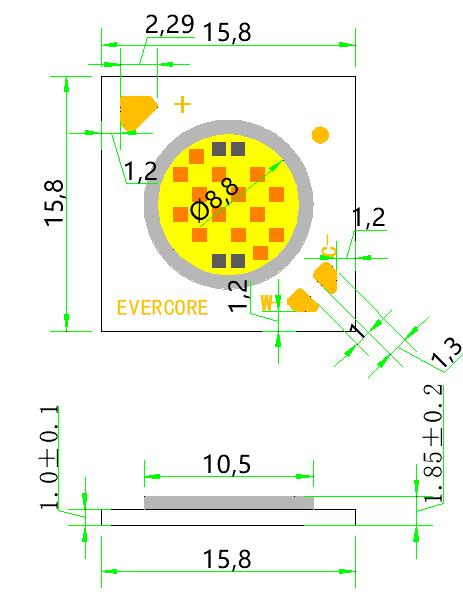

Product dimensions

  HK16105-V4

White bins on CIE-1931

HK16105-V4

Temperature Vs Lume:

HK16105-V4


TC VS IF curve:

    HK16105-V4

                                     HK16105-V4

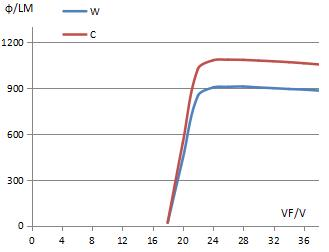

Current Vs Lumen:

      HK16105-V4

                                    HK16105-V4

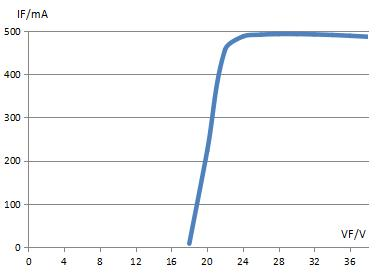

Voltage Vs Current:



       HK16105-V4

                                     HK16105-V4
