DK1916
DK1916
DK1916
Product Features:
1、LM-80 certified
2、CCT tunable range :1800-3000K;2200-4000K;1800-5000K
3、Ra>90
4、Light efficiency: 150lm/W
5、Halogen-like Color Temperature Adjustment Curve
6、Power ranging from 10W-20W. Best choice for intelligent lighting
Product application:
Widely used for high-end hotels, smart homes, high-end commercial space and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

CCT
(K)

CRI
(Ra)

Power
(W)

Current Typ
(mA)

CurrentMax
(mA)

Voltage
(V)

Light efficiency
(lm/W)

DK1916-0612

K20W**H

Φ14

2200-4000

≥90

20

600

700

36

120(4000K)

1800-3000

≥90

20

600

700

36

110(3000K)

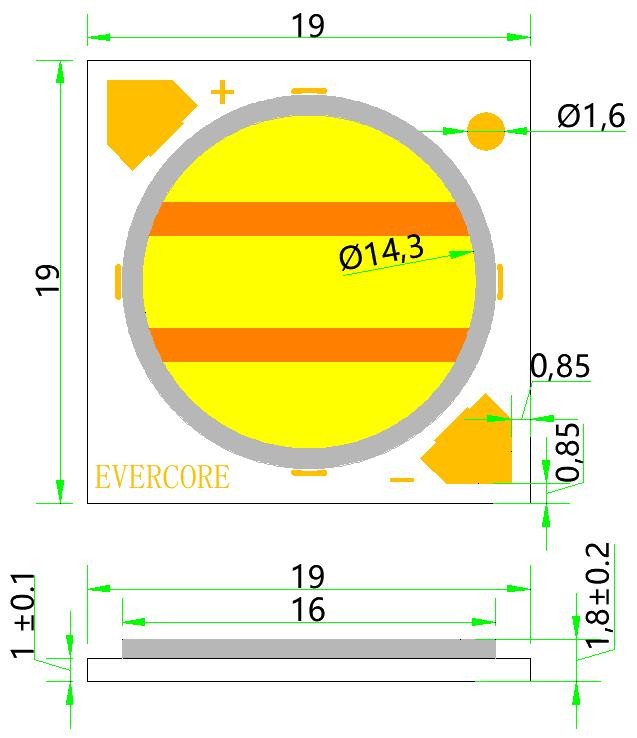

Product dimensions

  DK1916

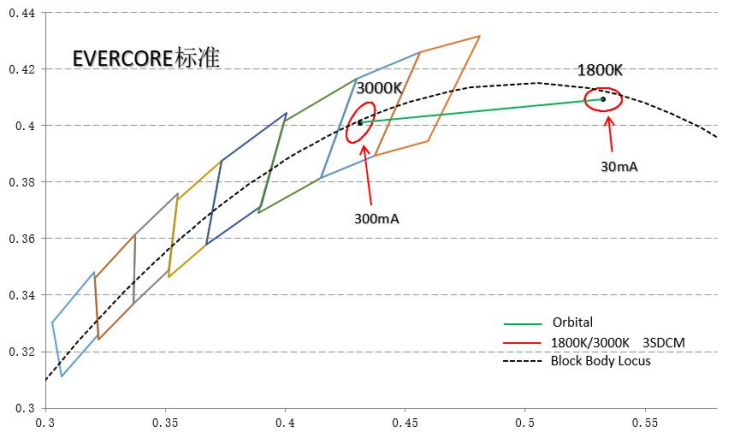

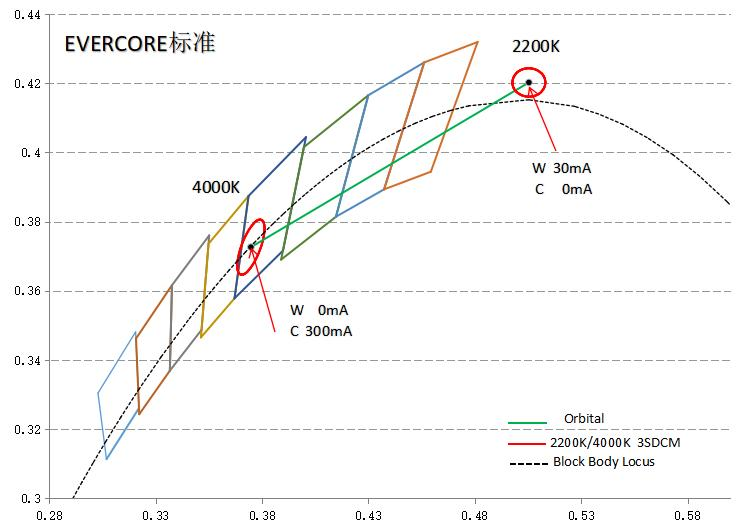

White bins on CIE-1931

DK1916


DK1916-0612K20WUOH:

DK1916

Temperature Vs Lume:

DK1916

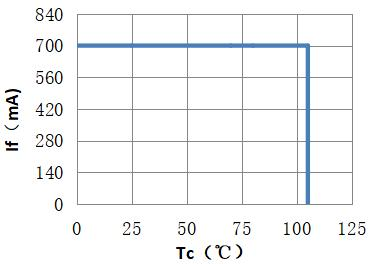

TC VS IF curve:


DK1916

                                                DK1916


Current Vs Lumen:

         DK1916

                                         DK1916


Voltage Vs Current:



       DK1916

                                     DK1916
