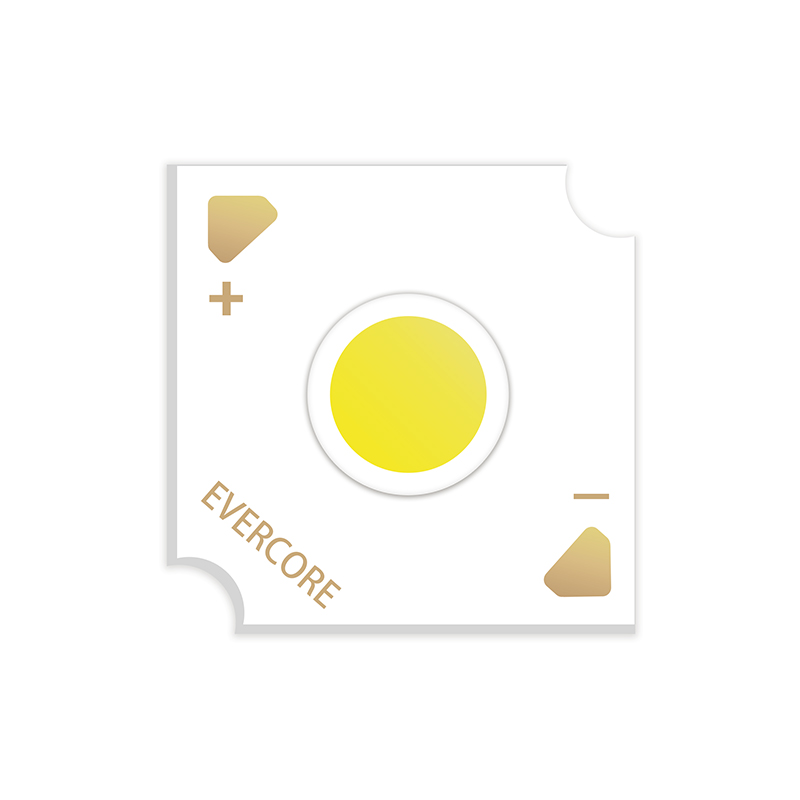

BH1306-G4
BH1306-G4
BH1306-G4
Product Features:
1、The most advanced international color evaluation system standard
2、CRI> 97
3、Rf:96 , Rg:100
4、Light efficiency: 105lm/W
5、Excited by multi-wavelength blue LED chips , to supplement the 650nm long red light and 480nm long blue light band, more truly restore the color of the object
6、SDCM<2,high light color consistency
Product application:
Widely used for high-end Hotel, boutique museums, and high-end home lighting and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CRI
Ra)

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

BH1375-0212

J6W*S-G4

Φ4

6

180

360

36

2700

97

95

3000

100

4000

105

  Product dimensions

BH1306-G4

White bins on CIE-1931

BH1306-G4

Temperature Vs Lume:

BH1306-G4


TC VS IF curve:
   BH1306-G4

                           BH1306-0212


Current Vs Lumen:

  BH1306-G4

                                    BH1306-0212


Voltage Vs Current:

        BH1306-G4

                            BH1306-0212
