BH1917-SG4
BH1917-SG4
BH1917-SG4
Product Features:
1、The most advanced international color evaluation system standard
2、CRI> 97
3、Rf:96 , Rg:100
4、Light efficiency: 120lm/W
5、Excited by multi-wavelength blue LED chips , to supplement the 650nm long red light and 480nm long blue light band, more truly restore the color of the object
6、SDCM<2,high light color consistency
Product application:
Widely used for high-end Hotel, boutique museums, and high-end home lighting and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CRI
Ra)

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

1206-SG4

Φ15

18

540

1380

36

2700K

97

115

3000K

120

4000K

125

1208-SG4

Φ15

24

720

1840

36

2700K

97

115

3000K

120

4000K

125

1210-SG4

Φ15

30

900

2300

36

2700K

97

115

3000K

120

4000K

125


  Product dimensions



BH1917-SG4

White bins on CIE-1931

BH1917-SG4

Temperature Vs Lume:

BH1917-SG4


TC VS IF curve:

  BH1917-SG4        BH1917-SG4            BH1917-SG4

                              BH1917-0612                                                        BH1917-0812                                                         BH1917-1012

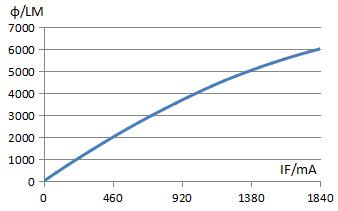

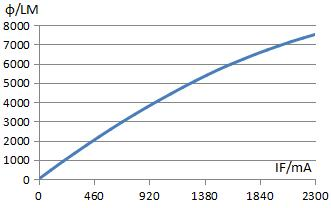

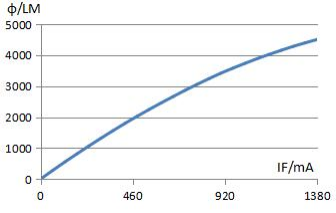

Current Vs Lumen:

       BH1917-SG4            BH1917-SG4                BH1917-SG4

                              BH1917-0612                                                        BH1917-0812                                                            BH1917-1012


Voltage Vs Current:



      BH1917-SG4                     BH1917-SG4                    BH1917-SG4

                              BH1917-0612                                                         BH1917-0812                                                         BH1917-1012
