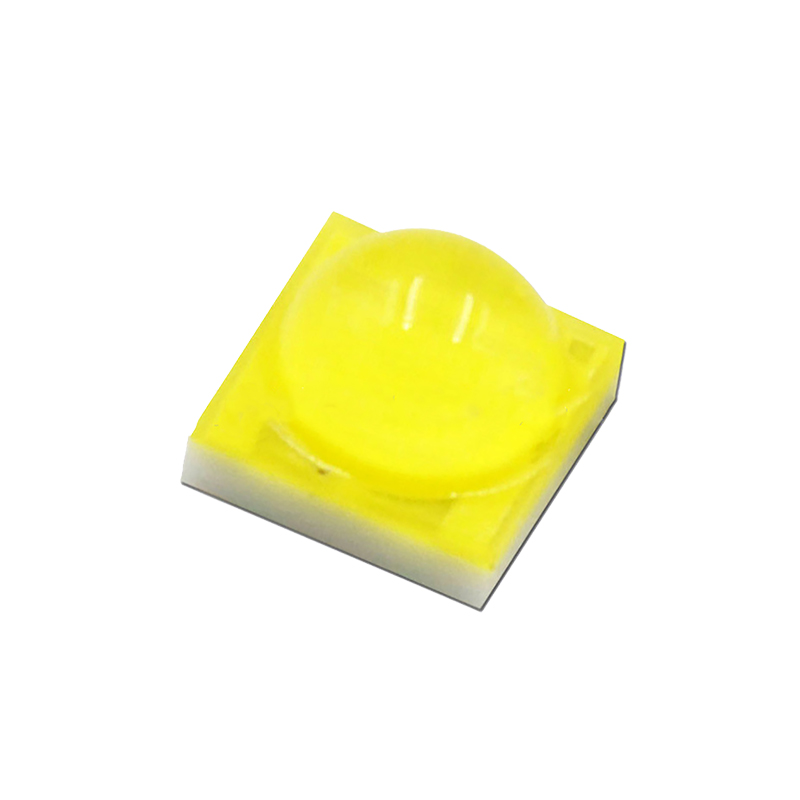

3535 FW
3535 FW
3535 FW
Product Features:
1、LM-80 certified
2、CRI>60/70/80/90
3、Light efficiency: 150lm/W(@3000K 80Ra)
4、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness
5、60deg,90deg,120deg beam angle are available(only for 3535 ceramic SMD product)
Product application:
Widely used for Indoor: Home lighting Outdoor: Urban landscape lighting and outdoor portable lighting.
Product Introduction
Related recommendations

Model Number

Power Typ
(W)

Power Max
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT
K)

CRI
Ra)

Luminous Flux
(lm)

CX353511FW*S01-P

1

3

350

1000

3.2

2700-6500

≥95

90-140

CX353511FW*H01-P

1

5

350

1500

3.2

2700-6500

≥90

110-160

CX353511FW*G01-P

1

5

350

1500

3.2

2700-6500

≥80

120-180

CX353511FW*P01-P

1

5

350

1500

3.2

2700-6500

≥70

130-200

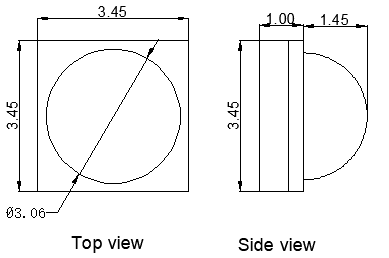

Product dimensions

          3535 FW

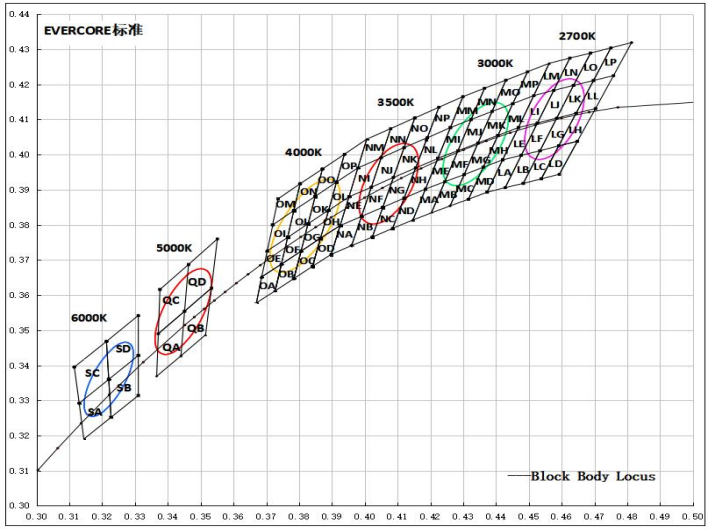

White bins on CIE-1931

3535 FW

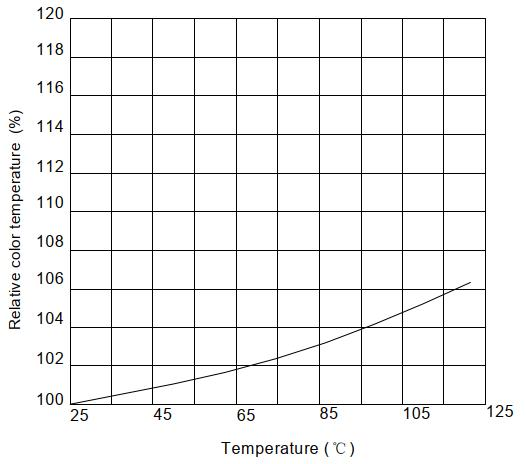

Temperature Vs Lume:

3535 FW

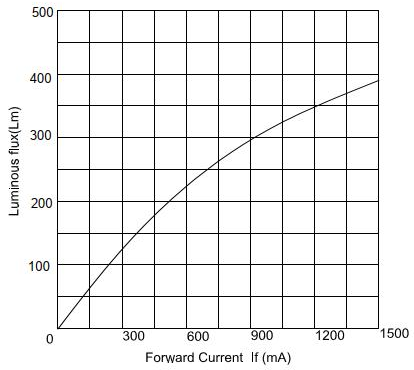

Current Vs Lumen:

      3535 FW

                                     3535 FW

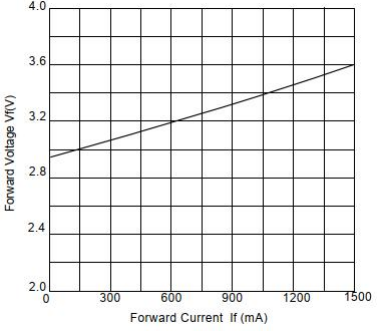

Voltage Vs Current:



          3535 FW

                                     3535 FW
