Home > Products > Monochrome Temperature SMD > 5050

5050 GW

Product Features:

1、LM-80 certified
2、CRI＞60
3、Light efficiency: 60 lm/W(@3000K 80Ra)
4、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness

Product application:

Widely used forOutdoor: Urban landscape lighting and outdoor portable lighting.

Product Introduction

Related recommendations

Model Number	Power Typ (W)	Power Max (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CCT （K）	CRI （Ra）	Luminous Flux (lm)
CX505011GW60001	10	10	3000	3000	4.0	6000-6500	≥60	600-700

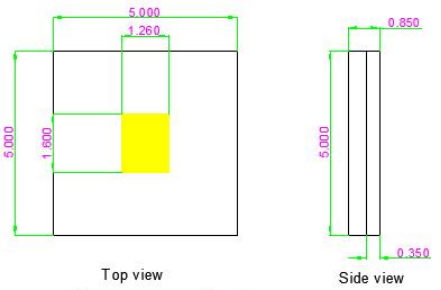

Product dimensions：

5050 GW

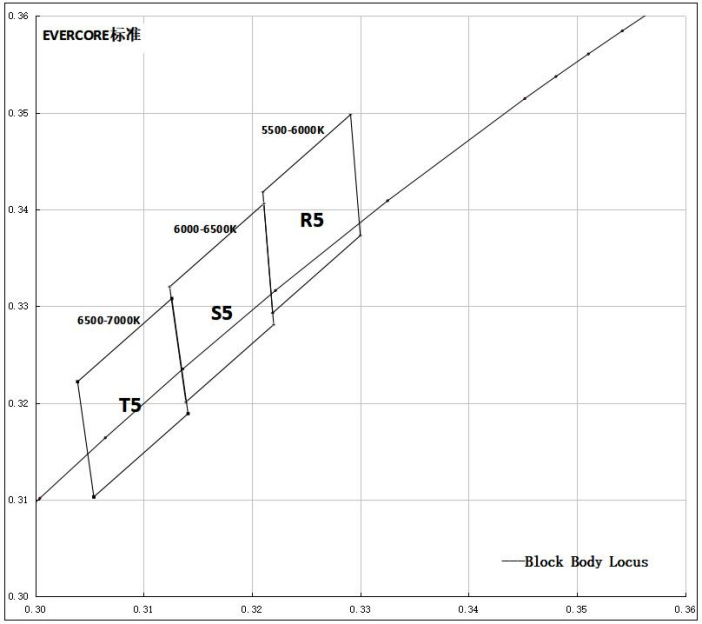

White bins on CIE-1931：

5050 GW

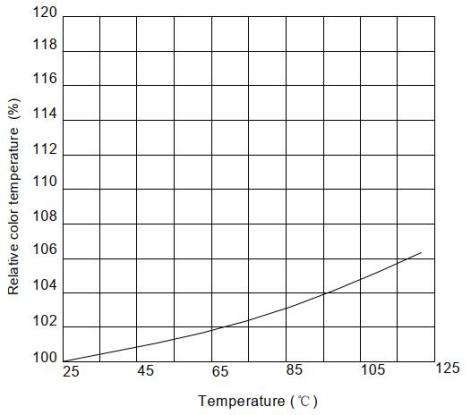

Temperature Vs Lume：

5050 GW

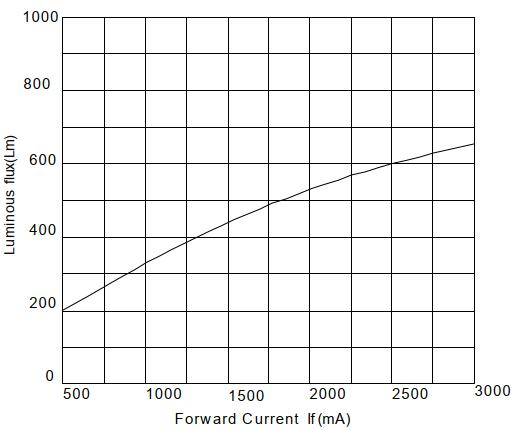

Current Vs Lumen：

5050 GW

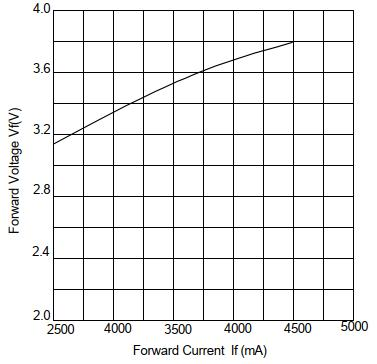

Voltage Vs Current：

5050 GW
