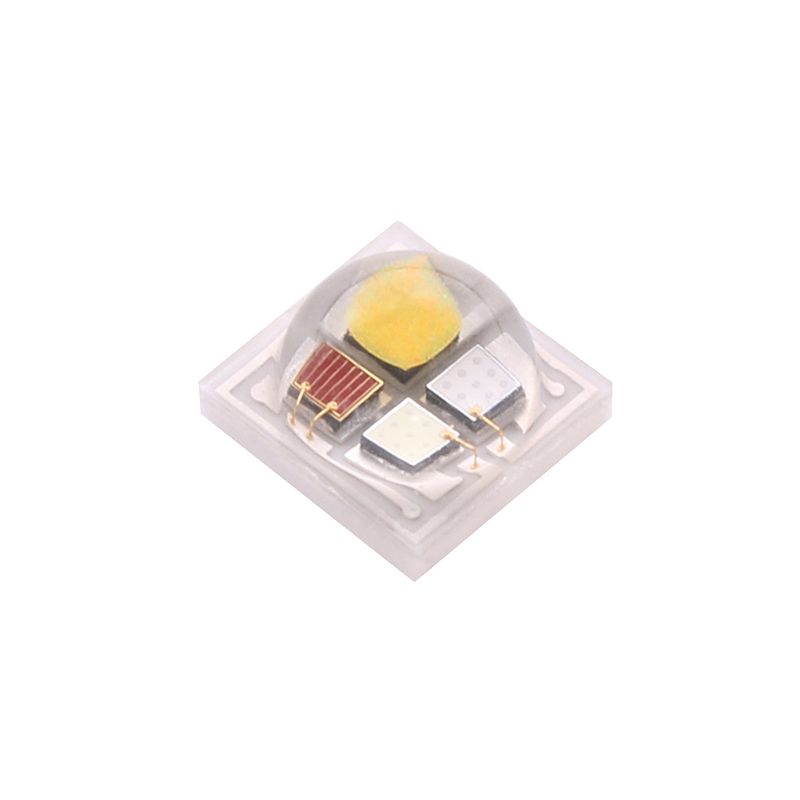

3535  RGW
3535  RGW
3535 RGW
Product Features:
1、LM-80 certified
2、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness
3、60deg,90deg,120deg beam angle are available
Product application:
Widely used forIndoor: Home lightingOutdoor: Urban landscape lighting and outdoor portable lighting.
Product Introduction
Related recommendations

Model Number

Power Typ
(W)

Power Max
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT
K)

CRI
Ra)

Luminous Flux
(lm)

CX3535RGBW4W*G01

4

6

350

400

2.3

620-630

/

30-50

3.2

520-530

/

90-110

3.2

460-470

/

20-30

3.2

3000/4000

≥80

80-100

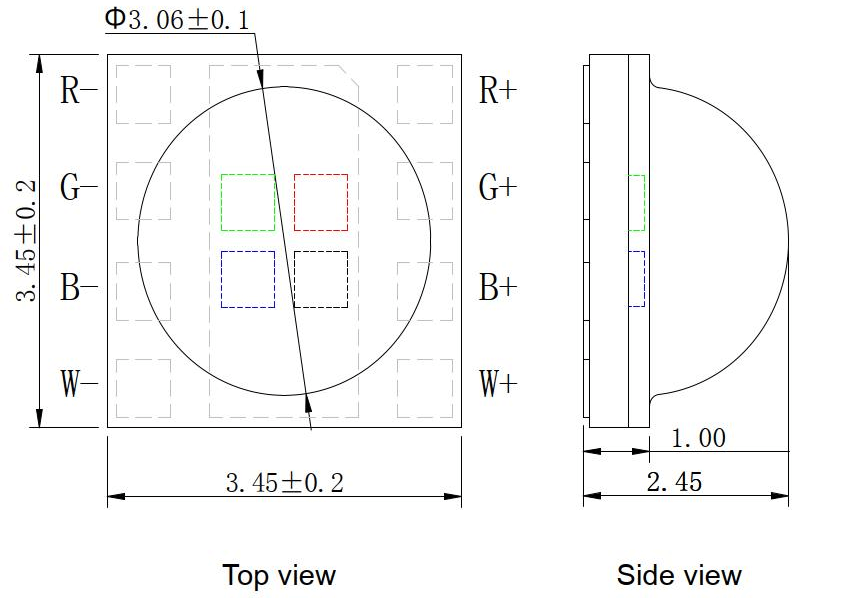

Product dimensions

          3535  RGW

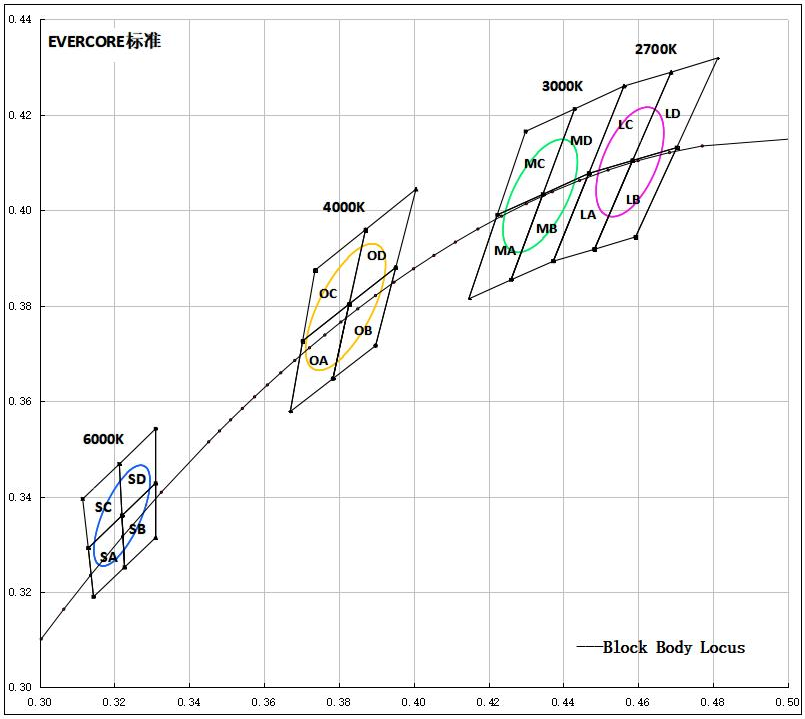

White bins on CIE-1931

3535  RGW

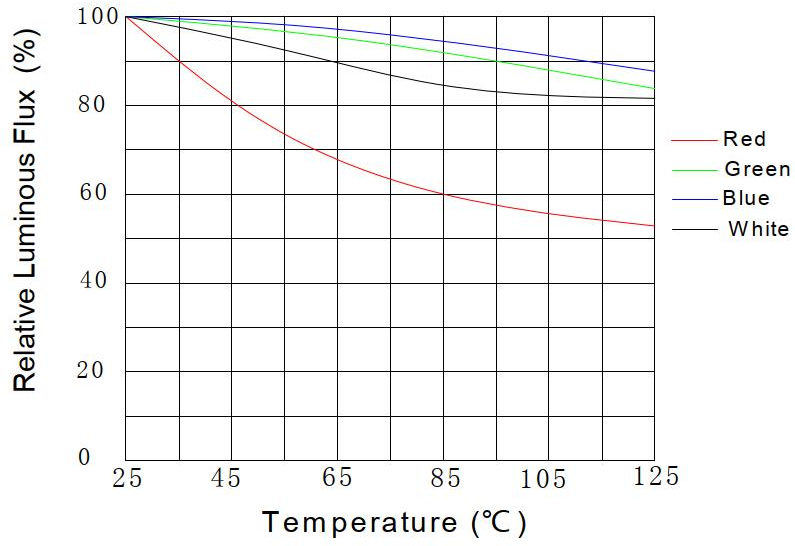

Temperature Vs Lume:

   3535  RGW

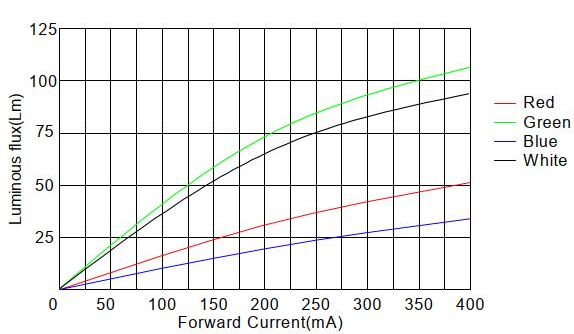

Current Vs Lumen:

   3535  RGW

                                          3535 RGW

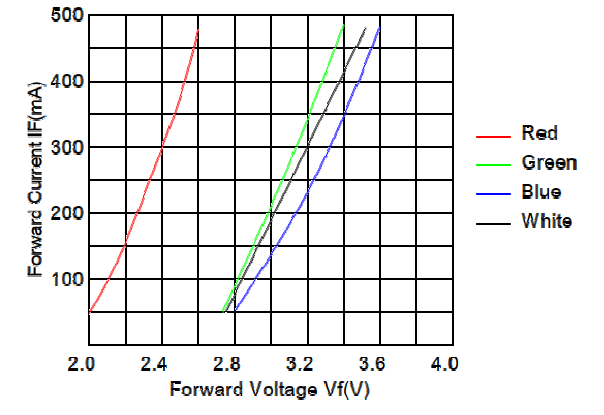

Voltage Vs Current:



   3535  RGW

                                            3535 RGW
