5050  RGBCW
5050  RGBCW
5050 RGBCW
Product Features:
1、LM-80 certified
2、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness
3、60deg,90deg,120deg beam angle are available
Product application:
Widely used for Indoor: Home lighting Outdoor: Urban landscape lighting and outdoor portable lighting.
Product Introduction
Related recommendations

Model Number

Power Typ
(W)

Power Max
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT
K)

CRI
Ra)

Luminous Flux
(lm)

CX5050RGBCW3WLSH01-B

0.3

0.5

150

200

2.3

R(620-630)

/

10-20

0.5

0.6

150

200

3.2

G(520-530)

/

40-50

0.5

0.6

150

200

3.2

B(450-460)

/

0-10

0.5

1.2

150

200

3.2

2700

≥90

40-50

0.5

1.2

150

200

3.2

6000

≥90

50-60

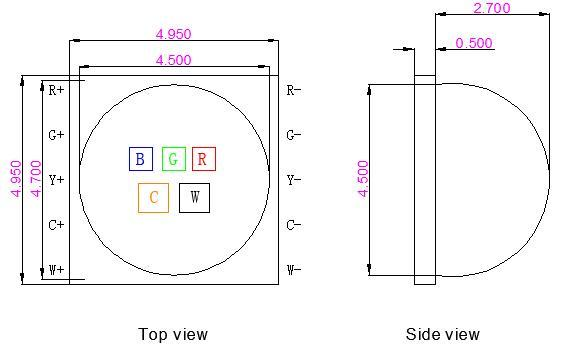

Product dimensions

          5050  RGBCW

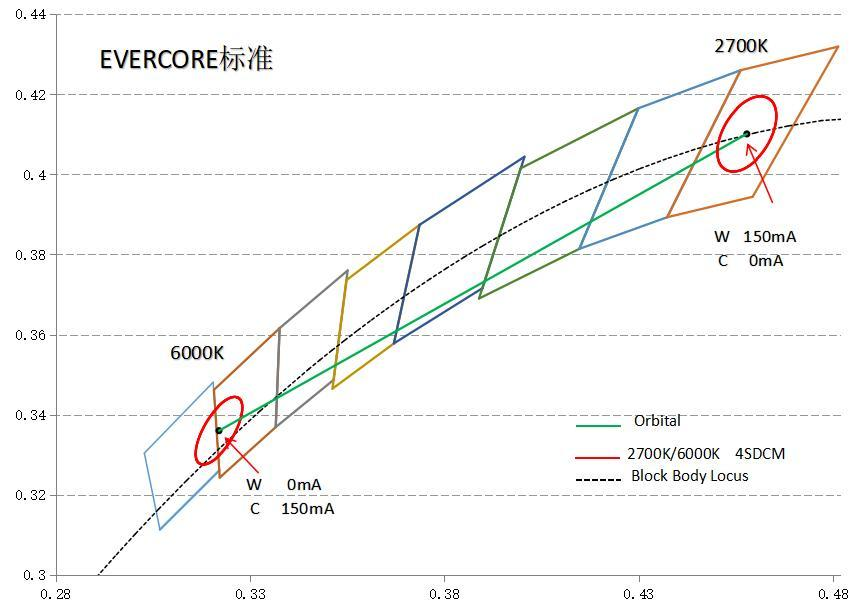

White bins on CIE-1931

5050  RGBCW

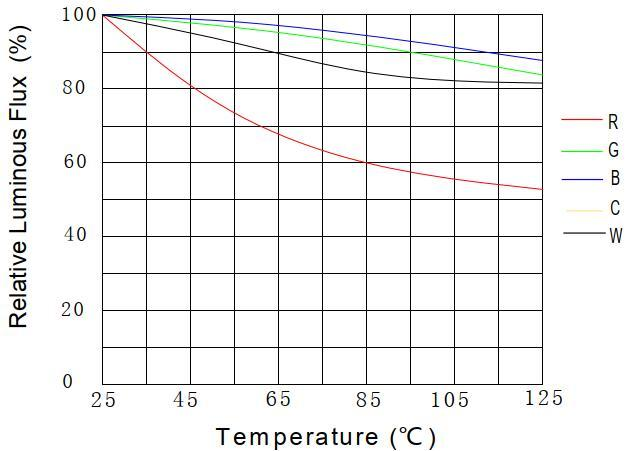

Temperature Vs Lume:

      5050  RGBCW

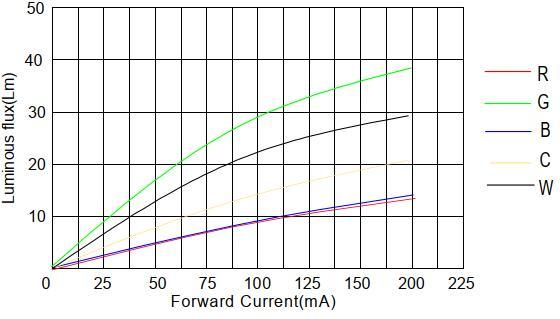

Current Vs Lumen:

   5050  RGBCW

                                      5050 RGBCW

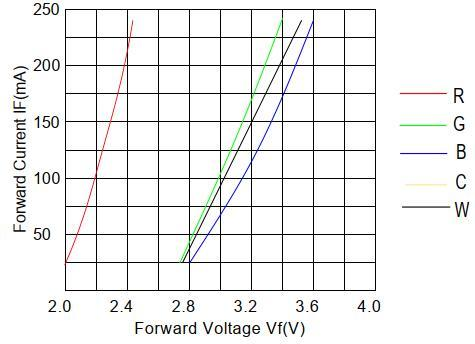

Voltage Vs Current:



   5050  RGBCW

                                       5050 RGBCW
