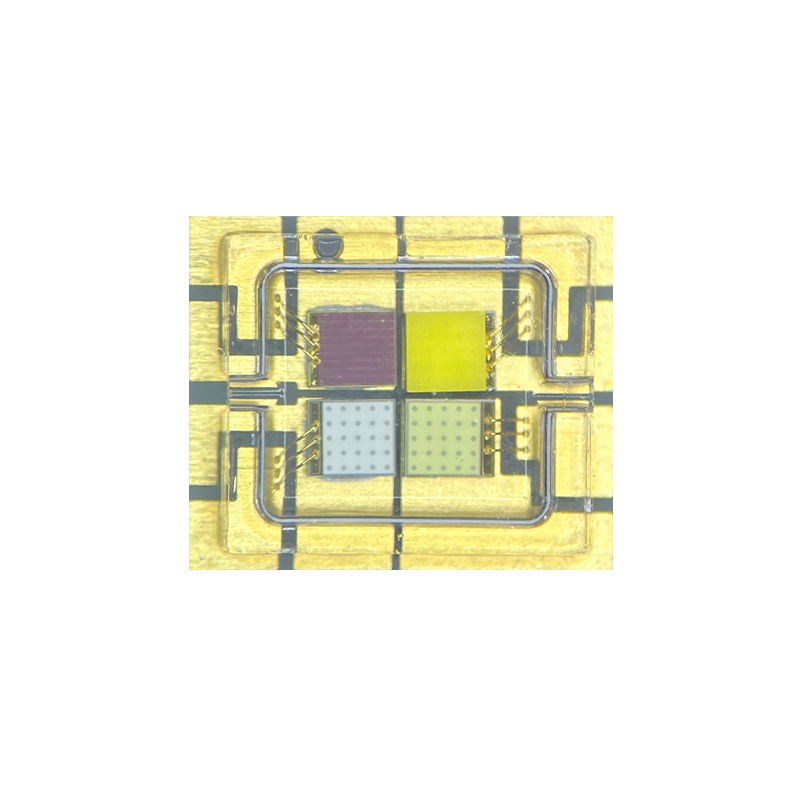

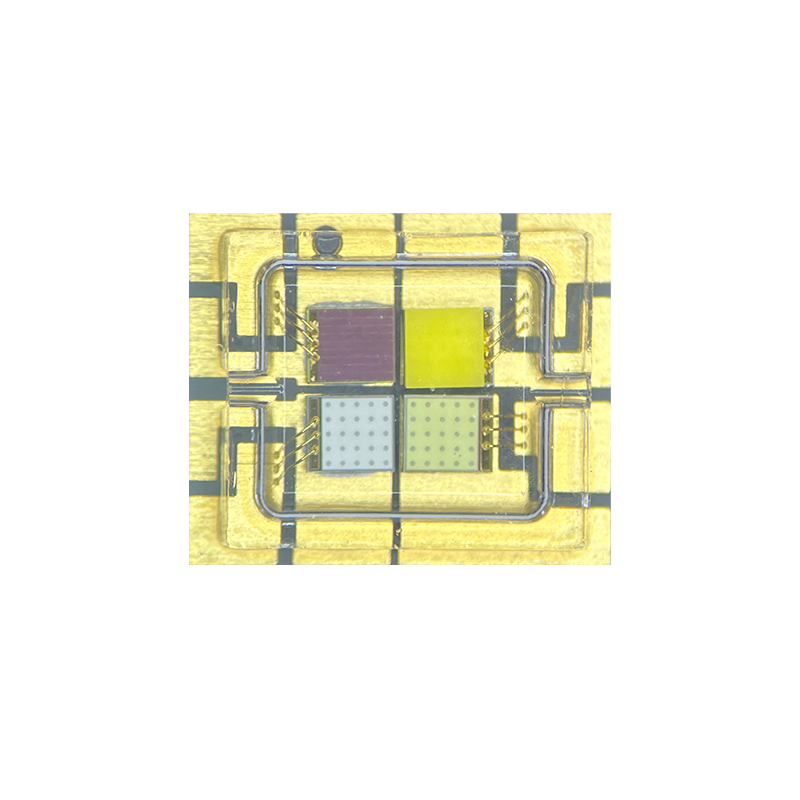

5060 RGBW15W

Product Features:

1、LM-80 certified
2、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness

Product application:

Widely used for Outdoor: Urban landscape lighting and outdoor portable lighting.

Product Introduction

Related recommendations

Model Number	Power Typ (W)	Power Max (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CCT （K）	CRI （Ra）	Luminous Flux (lm)
CX5060RGBW15W60001	10	15	700	1200	2.4	620-630	/	60-80
					3.3	520-530	/	150-170
					3.3	460-470	/	40-60
					3.3	6000	≥60	200-220

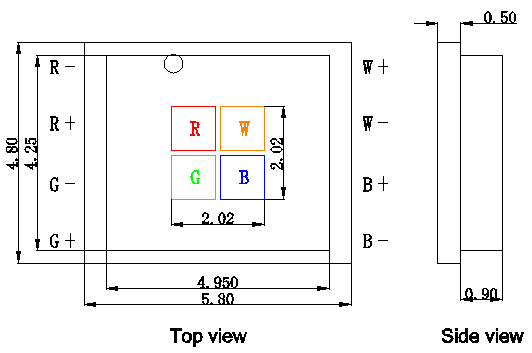

Product dimensions：

5060 RGBW15W

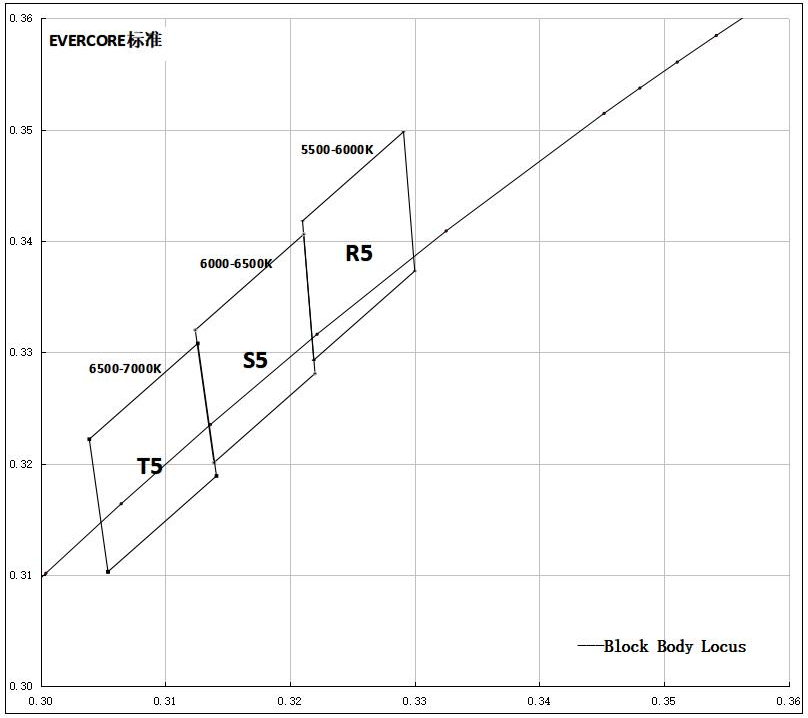

White bins on CIE-1931：

5060 RGBW15W

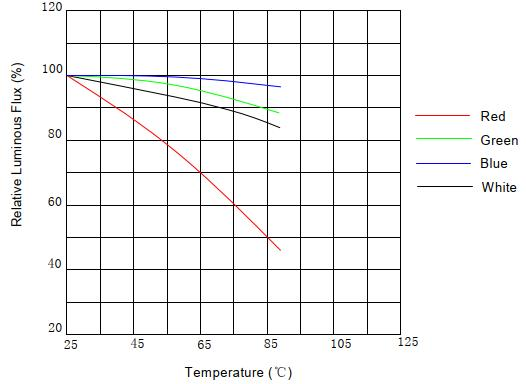

Temperature Vs Lume：

5060 RGBW15W

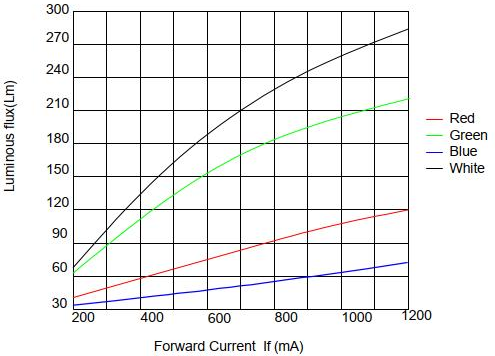

Current Vs Lumen：

5060 RGBW15W

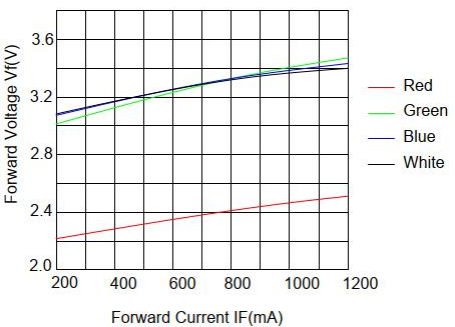

Voltage Vs Current：

5060 RGBW15W
