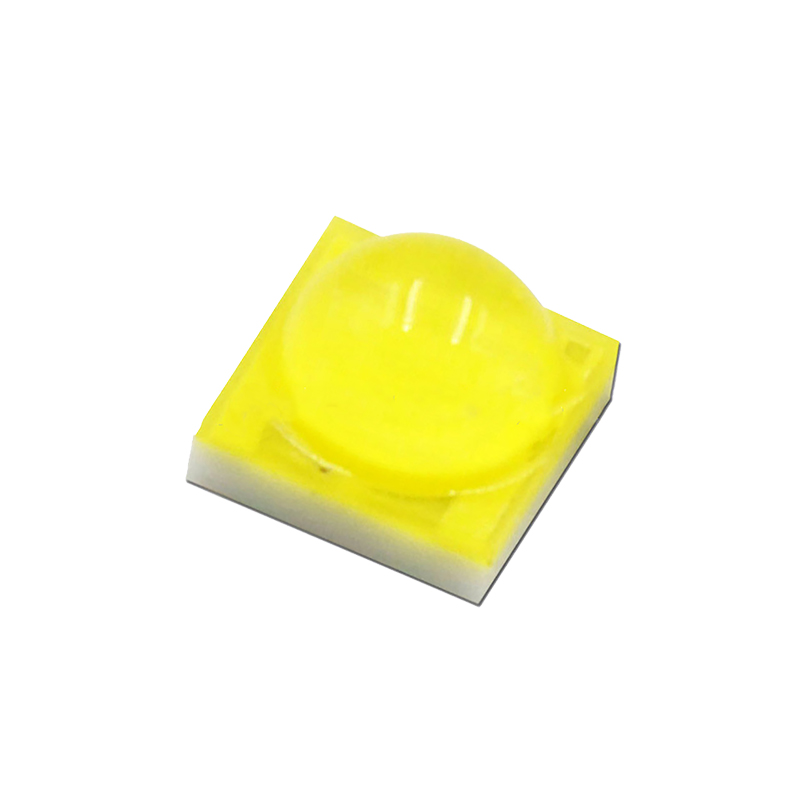

3535 EW
3535 EW
3535 EW
Product Features:
1、LM-80 certified
2、CRI>60/70/80/90
3、Light efficiency: 130lm/W(@3000K 80Ra)
4、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness
5、60deg,90deg,120deg beam angle are available(only for 3535 ceramic SMD product)
Product application:
Widely used forIndoor: Home lightingOutdoor: Urban landscape lighting and outdoor portable lighting.
Product Introduction
Related recommendations

Model Number

Power Typ
(W)

Power Max
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT
K)

CRI
Ra)

Luminous Flux
(lm)

CX353511EW*S01-P

1

3

350

1000

3.2

2700-6500

≥95

70-130

CX353511EW*H01-P

1

3

350

1000

3.2

2700-6500

≥90

80-130

CX353511EW*G01-P

1

3

350

1000

3.2

2700-6500

≥80

90-150

CX353511EW*P01-P

1

3

350

1000

3.2

2700-6500

≥70

100-160

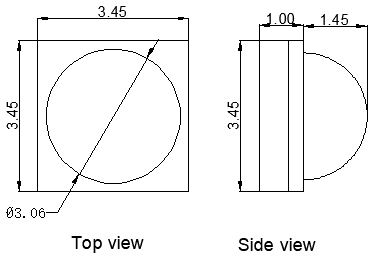

Product dimensions

          3535 EW

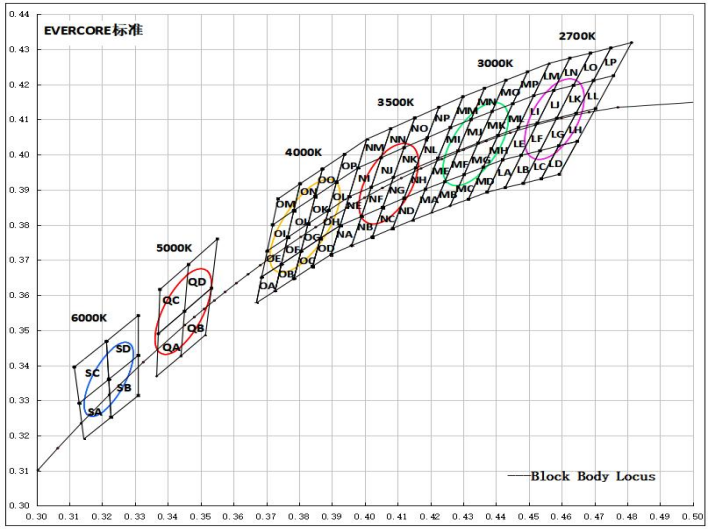

White bins on CIE-1931

3535 EW

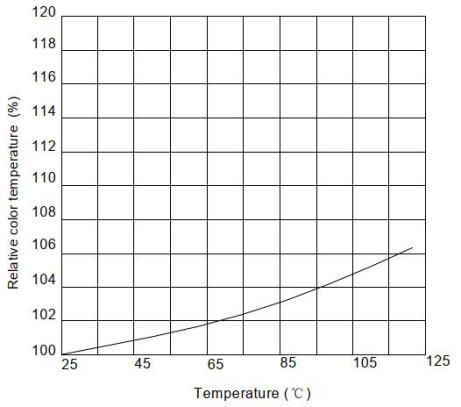

Temperature Vs Lume:

3535 EW

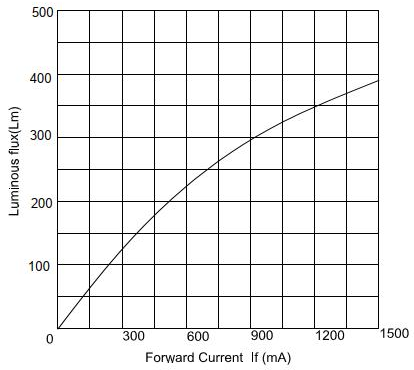

Current Vs Lumen:

      3535 EW

                                     3535 EW

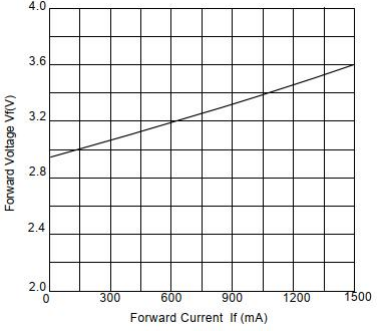

Voltage Vs Current:



          3535 EW

                                     3535 EW
