4040 HW
4040 HW
4040 HW
Product Features:
1、LM-80 certified
2、CRI>60
3、Light efficiency: 50 lm/W(@3000K 80Ra)
4、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness
Product application:
Widely used forOutdoor: Urban landscape lighting and outdoor portable lighting.
Product Introduction
Related recommendations

Model Number

Power Typ
(W)

Power Max
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT
K)

CRI
Ra)

Luminous Flux
(lm)

CX404011HW60001

20

20

5000

5000

3.8

6000-6500

≥60

1000-1200

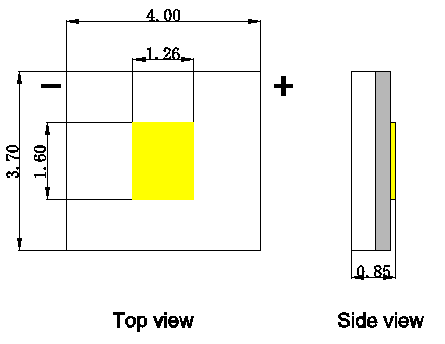

Product dimensions

          4040 HW

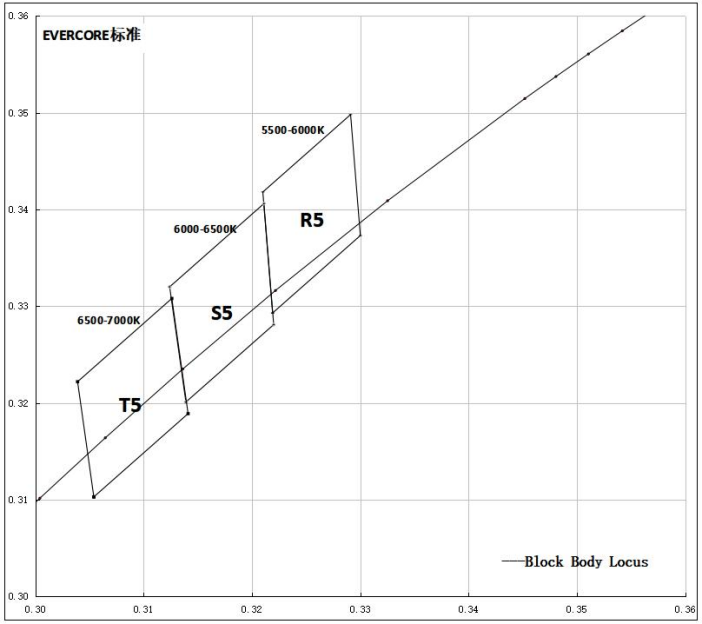

White bins on CIE-1931

4040 HW

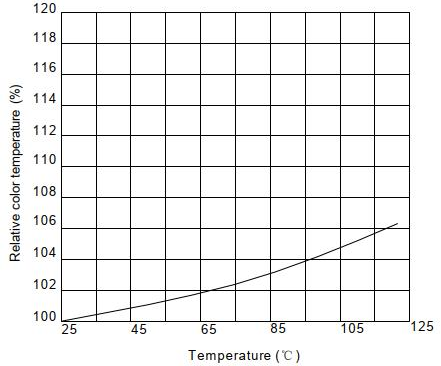

Temperature Vs Lume:

4040 HW

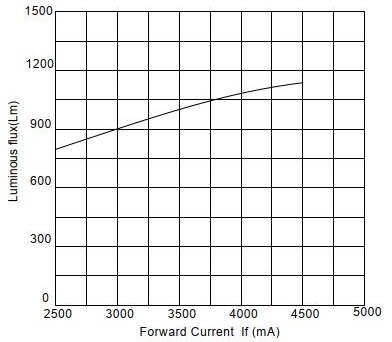

Current Vs Lumen:

      4040 HW

                                     4040 HW

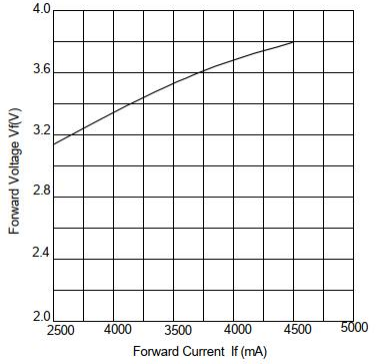

Voltage Vs Current:



          4040 HW

                                     4040 HW
