4040 GW
4040 GW
4040 GW
Product Features:
1、LM-80 certified
2、CRI>60
3、Light efficiency: 60 lm/W(@3000K 80Ra)
4、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness
Product application:
Widely used forOutdoor: Urban landscape lighting and outdoor portable lighting.
Product Introduction
Related recommendations

Model Number

Power Typ
(W)

Power Max
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT
K)

CRI
Ra)

Luminous Flux
(lm)

CX404011GW60001

10

10

3000

3000

3.8

6000-6500

≥60

600-700

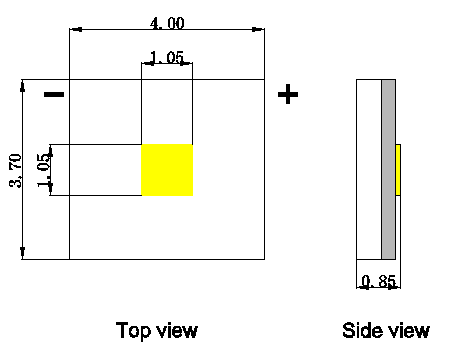

Product dimensions

          4040 GW



White bins on CIE-1931

4040 GW


Temperature Vs Lume:

4040 GW

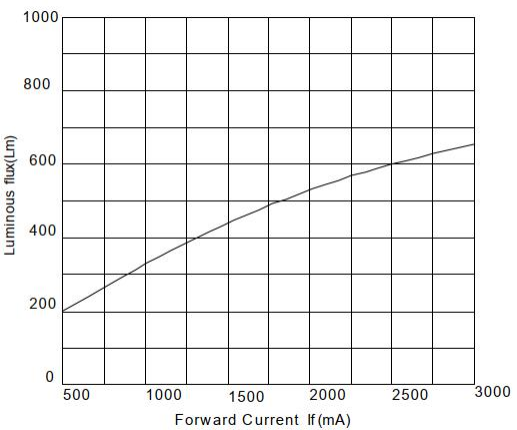

Current Vs Lumen:

      4040 GW

                                              4040 GW

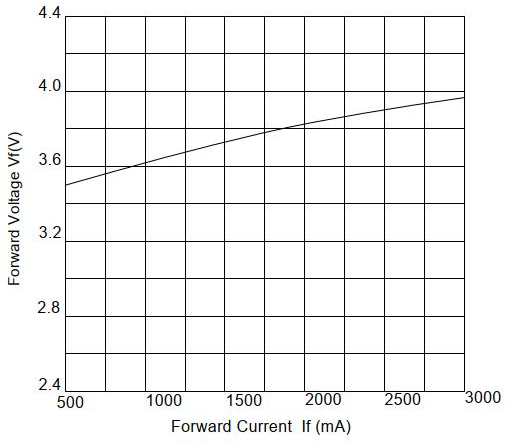

Voltage Vs Current:



          4040 GW

                                                  4040 GW
