Home > Products > Monochrome Temperature COB > High efficiency series > High Efficiency Series - Flagship Edition

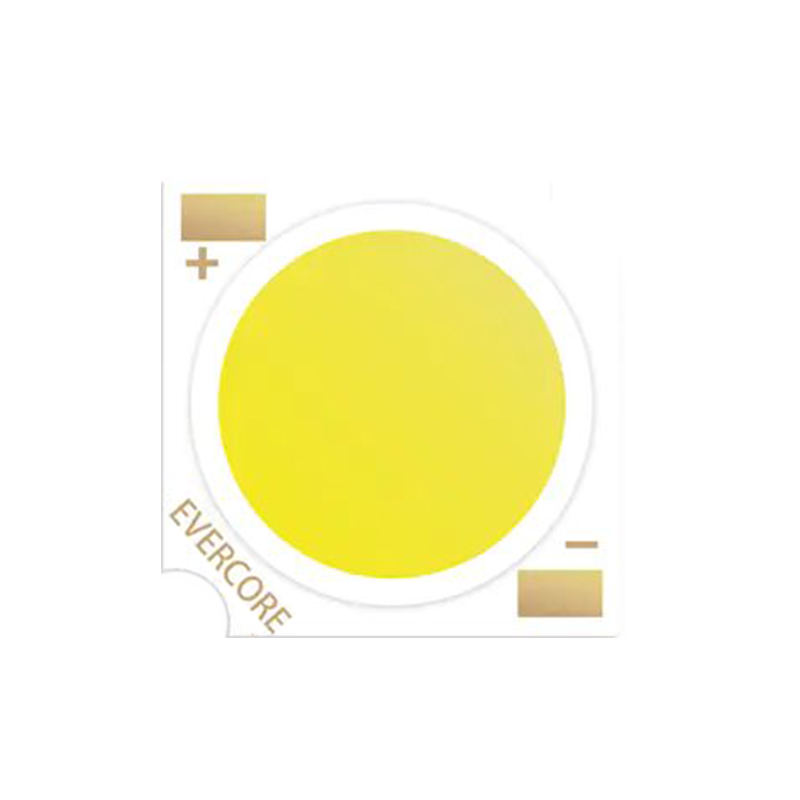

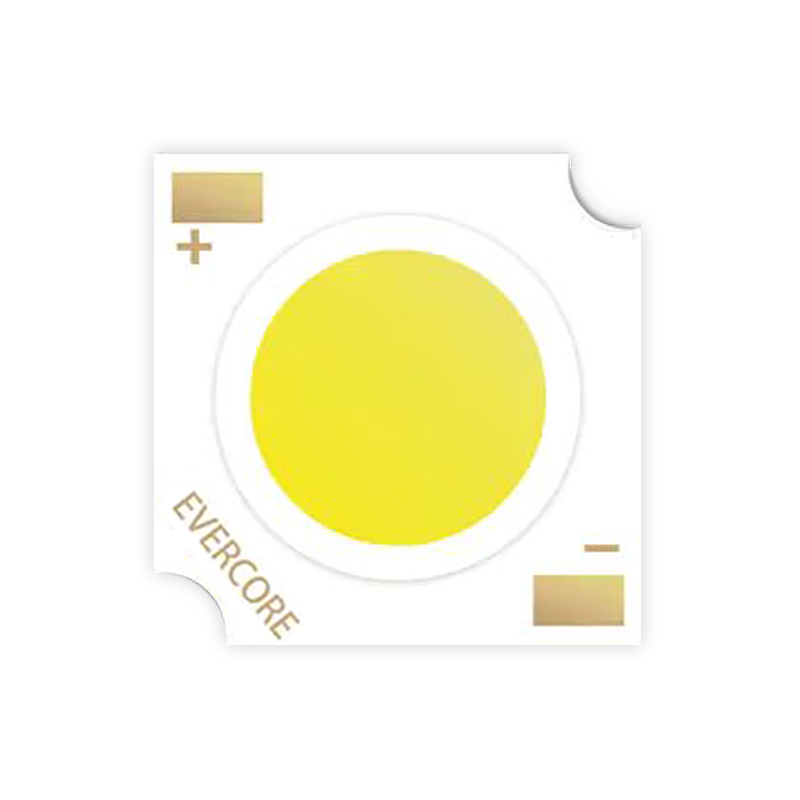

SH1311-K90
SH1311-K90
SH1311-K90
Product Features:
1、Complied with ANSI standard, LM-80 certified
2、CRI> 90
3、Light efficiency: 200lm/W(@3000K 90Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency
Product application:
Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CRI
Ra)

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

SH1311-0412

J8W*H-KV4G

Φ9

8

240

600

36

2700

≥90

173

3000

182

4000

191

SH1311-0512

J10W*H-KV4G

Φ9

10

300

750

36

2700

≥90

173

3000

182

4000

191

  Product dimensions

SH1311-K90

White bins on CIE-1931

SH1311-K90

Temperature Vs Lume:

SH1311-K90

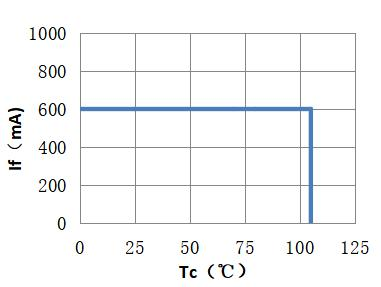

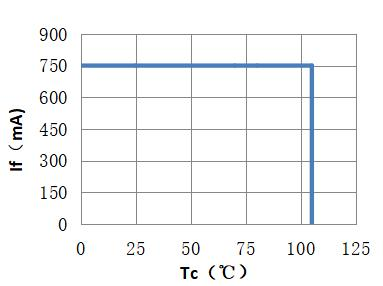

TC VS IF curve:

SH1311-K90             SH1311-K90

                              SH1311-0412                                                               SH1311-0512


Current Vs Lumen:

      SH1311-K90                     SH1311-K90

                            SH1311-0412                                                               SH1311-0512


Voltage Vs Current:

    SH1311-K90                   SH1311-K90

                     SH1311-0412                                                                      SH1311-0512
