SH1375-K90

Product Features:

1、Complied with ANSI standard, LM-80 certified
2、CRI＞ 90
3、Light efficiency: 200lm/W(@3000K 90Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency

Product application:

Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CRI （Ra）	Light efficiency @3000K (lm/W)	Luminous Flux (lm)
SH1375-0212 J4W*H-KV4G	Φ6	4	120	300	36	2700	≥90	173
						3000		182
						4000		191

Product d mensions：

SH1375-K90

White bins on CIE-1931：

SH1375-K90

Temperature Vs Lume：

SH1375-K90

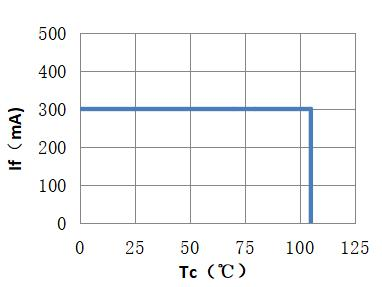

TC VS IF curve：

SH1375-K90

SH1375-0212

Current Vs Lumen：

SH1375-K90

SH1375-0212

Voltage Vs Current：

SH1375-K90

SH1375-0212
