SH1917-K90
SH1917-K90
SH1917-K90
Product Features:
1、Complied with ANSI standard, LM-80 certified
2、CRI> 90
3、Light efficiency: 200lm/W(@3000K 90Ra)
4、Work with isolated driver with a voltage range of 36V to 38V, compatible with international standard sizes
5、SDCM<2, high light color consistency
Product application:
Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CRI
Ra)

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

SH1917-0812

J16W*H-KV4G

Φ15

16

480

1200

36

2700

≥90

176

3000

185

4000

194

SH1917-1012

J20W*H-KV4G

Φ15

20

600

1500

36

2700

≥90

176

3000

185

4000

194

SH1917-1313

J28W*H-KV4G

Φ15

28

780

1950

36

2700

≥90

176

3000

185

4000

194




  Product dimensions

SH1917-K90

White bins on CIE-1931

SH1917-K90


Temperature Vs Lume:

SH1917-K90

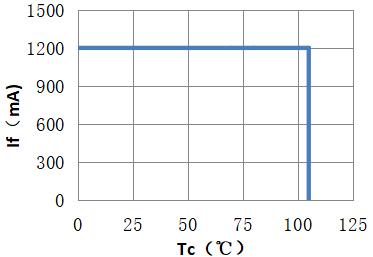

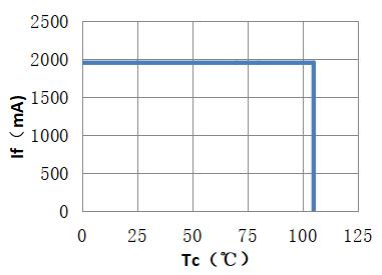

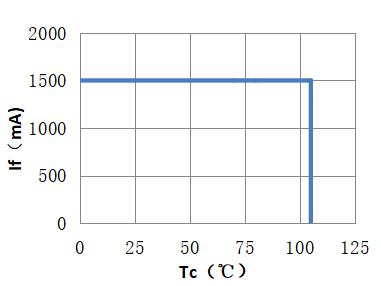

TC VS IF curve:

SH1917-K90  SH1917-K90   SH1917-K90

                             BH1917-0812                                                        BH1917-1012                                                           BH1917-13


Current Vs Lumen:

  SH1917-K90               SH1917-K90              SH1917-K90

                             BH1917-0812                                                        BH1917-1012                                                           BH1917-13


Voltage Vs Current:

    SH1917-K90              SH1917-K90           SH1917-K90

                             BH1917-0812                                                        BH1917-1012                                                           BH1917-13
