HC1611
HC1611
HC1611
Product Features:
1、Complied with ANSI standard, LM-80 certified
2、CRI> 90
3、Light efficiency:130lm/W(@3000K 90Ra)
4、Constant voltage input, automatic constant current, a single power supply to drive multiple sets of parallel lamps
5、SDCM<2, high light color consistency
Product application:
Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Voltage Min
(V)

Voltage Max
(V)

CCT
(K)

CRI
Ra)

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

HC1611-0707

J12W**H-KV4

Φ9

12

24

27

2700

≥90

115

1380

3000

≥90

120

1440

4000

≥90

125

1500

HC1611-0807

J15W**H-KV4

Φ9

15

24

27

2700

≥90

115

1725

3000

≥90

120

1800

4000

≥90

125

1875

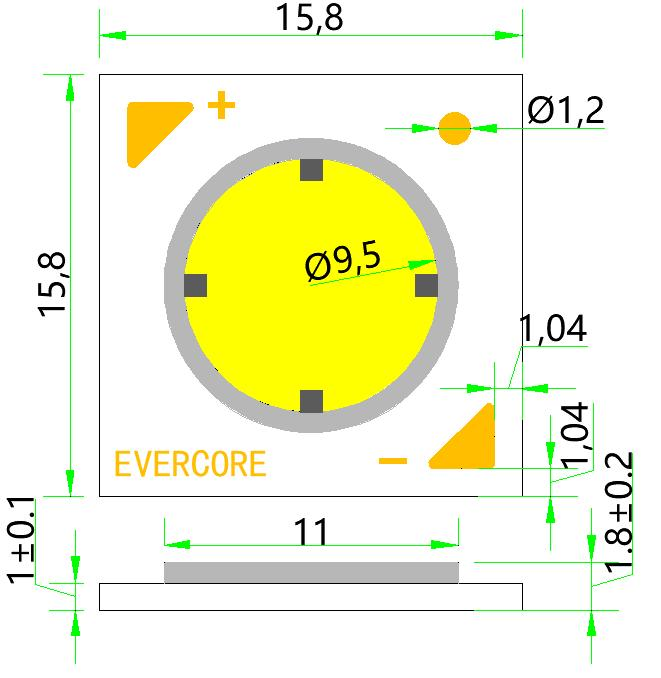

  Product dimensions

HC1611

White bins on CIE-1931

HC1611

Temperature Vs Lume:

HC1611

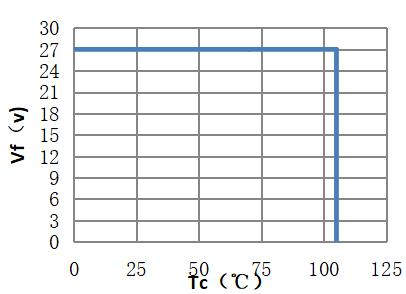

TC VS IF curve:

   HC1611          HC1611

                                 CH1611-0707                                                               CH1611-0807

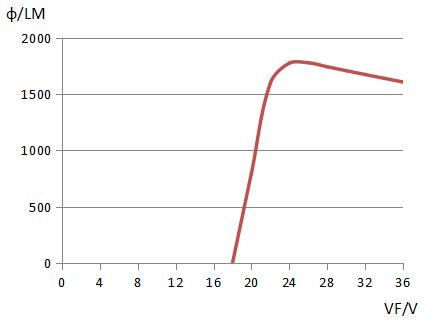

Current Vs Lumen:

HC1611       HC1611

                             CH1611-0707                                                                       CH1611-0807

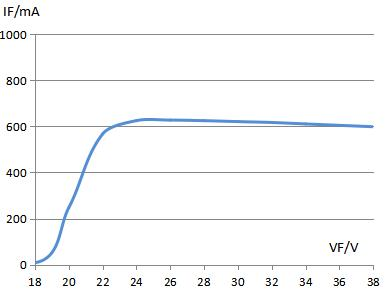

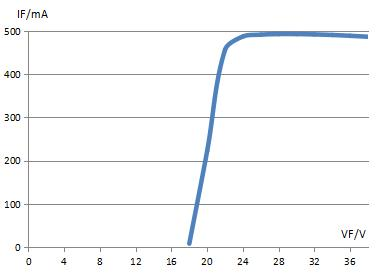

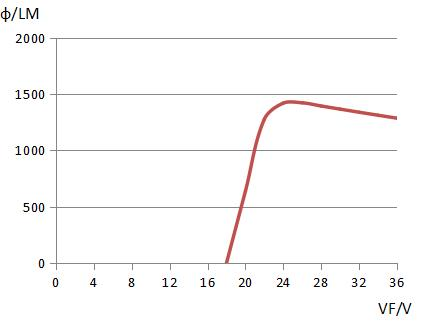

Voltage Vs Current:

     HC1611                        HC1611

                             CH1611-0707                                                                       CH1611-0807
