HC1917
HC1917
HC1917
Product Features:
1、Complied with ANSI standard, LM-80 certified
2、CRI> 90
3、Light efficiency:130lm/W(@3000K 90Ra)
4、Constant voltage input, automatic constant current, a single power supply to drive multiple sets of parallel lamps
5、SDCM<2, high light color consistency
Product application:
Widely used for hotel clubs, museums, clothing brand stores, chain supermarkets and high-end home lighting and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Voltage Min
(V)

Voltage Max
(V)

CCT
(K)

CRI
Ra)

Light efficiency
@3000K
(lm/W)

Luminous Flux
(lm)

HC1917-0615

J18W**H-KV4

Φ15

18

48

54

2700

≥90

120

2160

3000

≥90

125

2250

4000

≥90

130

2340

HC1917-0815

J24W**H-KV4

Φ15

24

48

54

2700

≥90

120

2880

3000

≥90

125

3000

4000

≥90

130

3120

HC1917-1015

J30W**H-KV4

Φ15

30

48

54

2700

≥90

120

3600

3000

≥90

125

3750

4000

≥90

130

3900

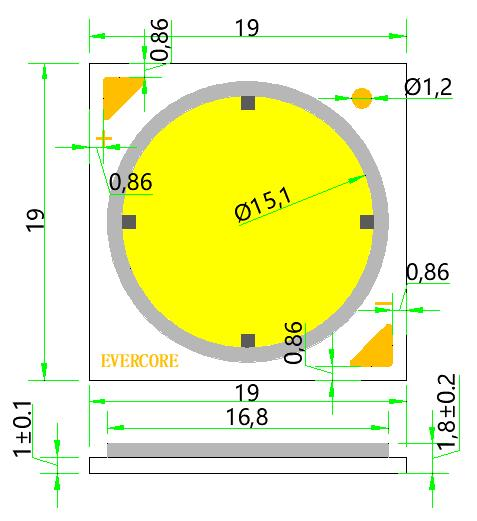

  Product dimensions

HC1917

White bins on CIE-1931

HC1917

Temperature Vs Lume:

HC1917

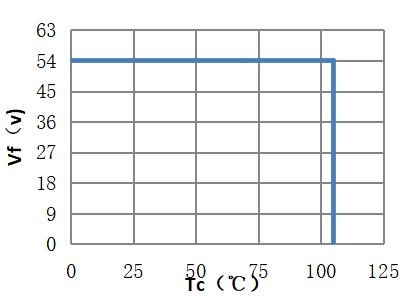

TC VS IF curve:

HC1917HC1917HC1917

                               CH1917-0615                                                       CH1917-0815                                                         CH1917-1015

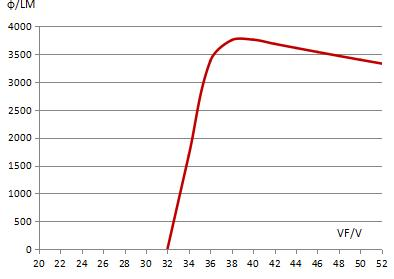

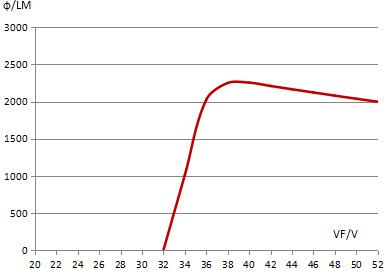

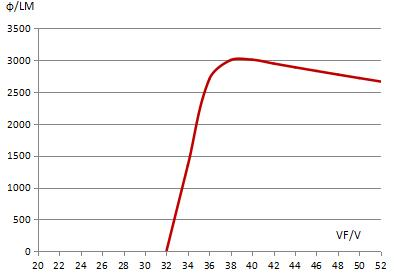

Current Vs Lumen:

HC1917       HC1917     HC1917

                              CH1917-0615                                                      CH1917-0815                                                              CH1917-1015

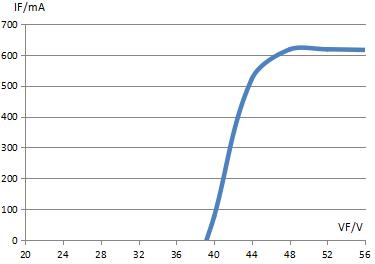

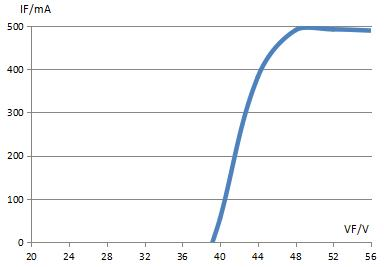

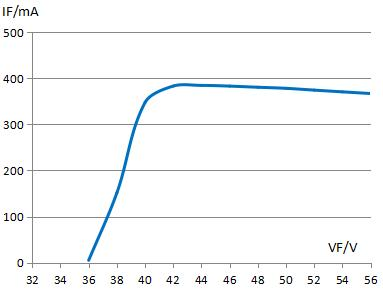

Voltage Vs Current:



HC1917          HC1917            HC1917



                            CH1917-0615                                                         CH1917-0815                                                             CH1917-1015
