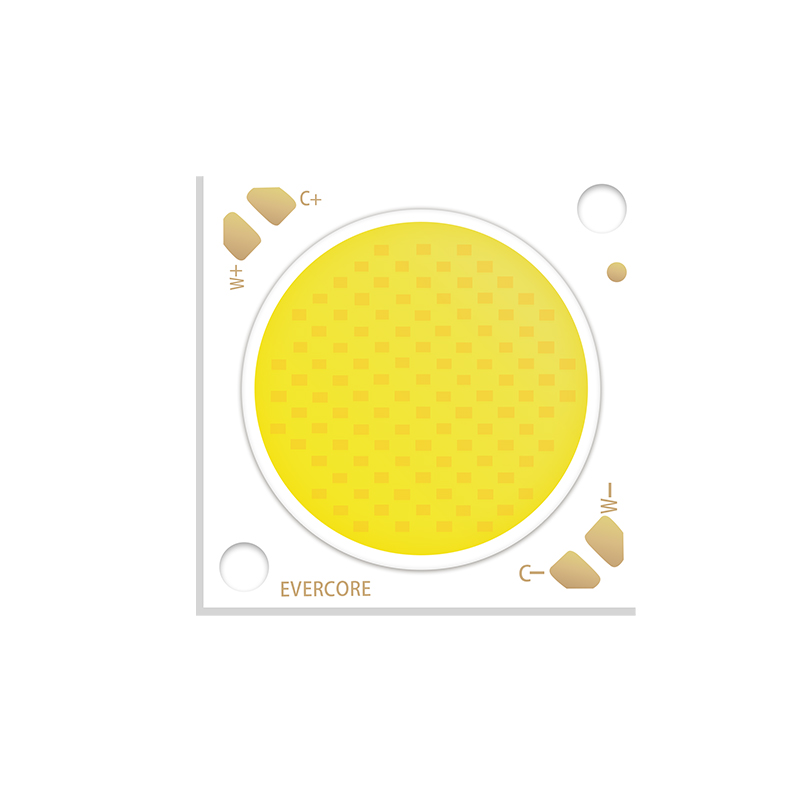

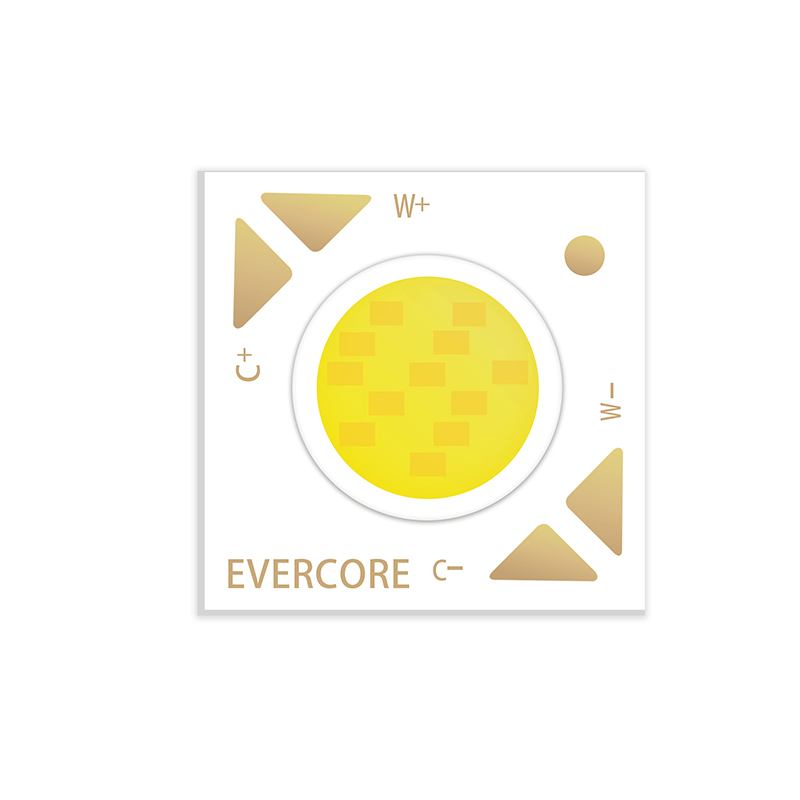

CK2823-SV4
CK2823-SV4
CK2823-SV4
Product Features:
1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra>90
4、Light efficiency: 135lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment
Product application:
Widely used for high-end hotels, smart homes, high-end commercial space and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT

(K)

CRI
Ra)

Light efficiency
(lm/W)

CK2823-1812

J54WLSH-SV4

Φ21

54

1440

3600

36

2700

≥90

115

54

1440

3600

36

6000

≥90

135

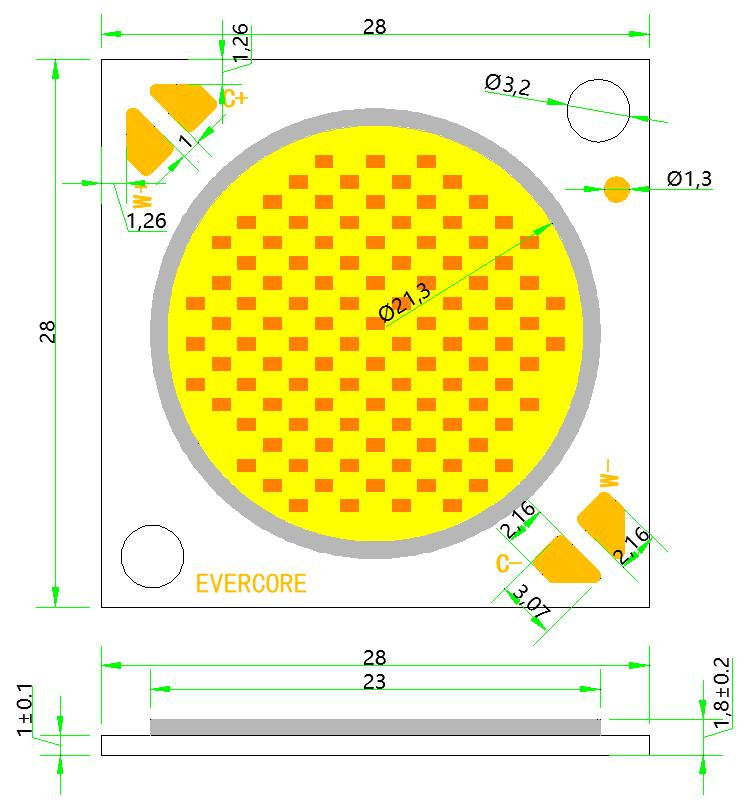

Product dimensions

CK2823-SV4

White bins on CIE-1931

CK2823-SV4

Temperature Vs Lume:

CK2823-SV4

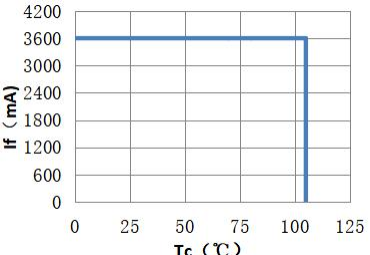

TC VS IF curve:

            CK2823-SV4

                                         CK2823-SV4

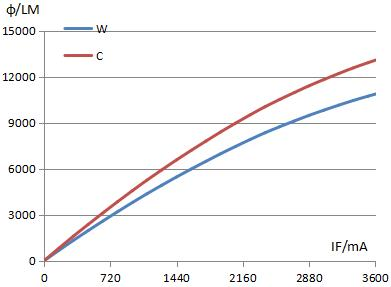

Current Vs Lumen:

         CK2823-SV4

                                     CK2823-SV4

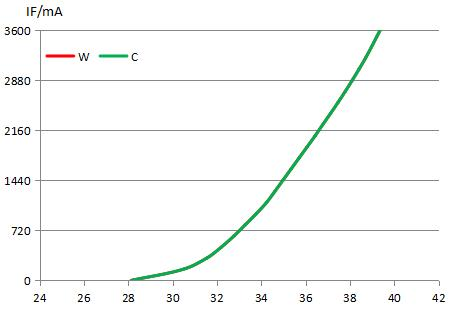

Voltage Vs Current:



       CK2823-SV4

                                        CK2823-SV4
