CK18145-SV4
CK18145-SV4
CK18145-SV4
Product Features:
1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra>90
4、Light efficiency: 135lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment
Product application:
Widely used for high-end hotels, smart homes, high-end commercial space and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT

(K)

CRI
Ra)

Light efficiency
(lm/W)

CK18145-0612

J18WLSH-SV4

Φ13

18

480

1200

36

2700

≥90

115

18

480

1200

36

6000

≥90

135

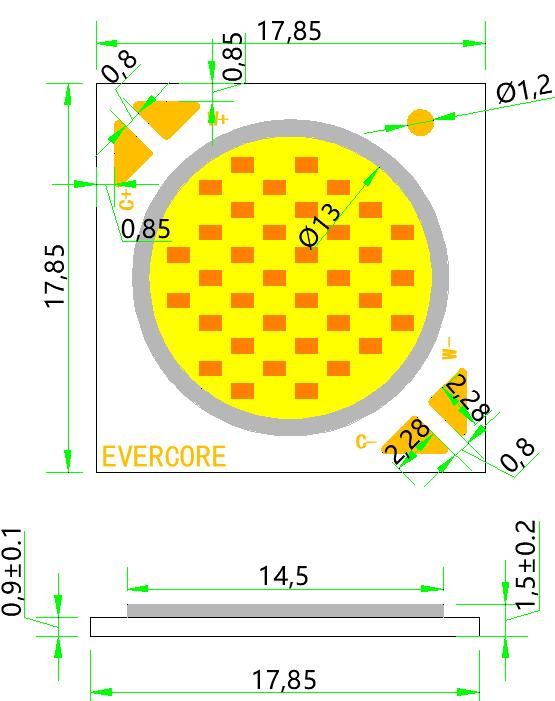

Product dimensions

CK18145-SV4

White bins on CIE-1931

CK18145-SV4

Temperature Vs Lume:

CK18145-SV4

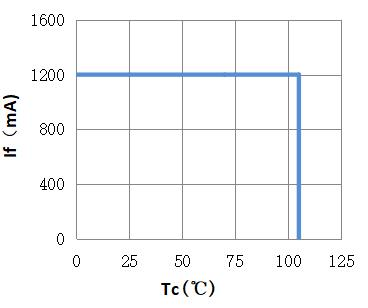

TC VS IF curve:

         CK18145-SV4

                                 CK18145-SV4

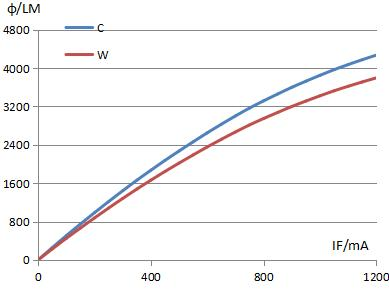

Current Vs Lumen:

         CK18145-SV4

                                           CK18145-SV4

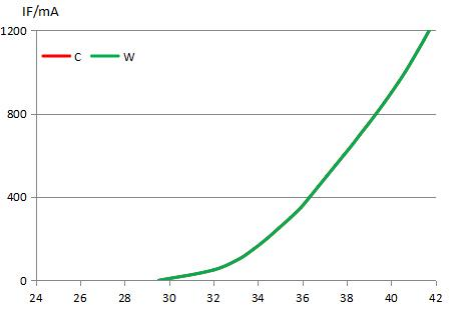

Voltage Vs Current:



       CK18145-SV4

                                     CK18145-SV4
