CK1611-SV4
CK1611-SV4
CK1611-SV4
Product Features:
1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra>90
4、Light efficiency: 130lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment
Product application:
Widely used for high-end hotels, smart homes, high-end commercial space and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT

(K)

CRI
Ra)

Light efficiency
(lm/W)

CK1611-0412

J12WLSH-SV4

Φ9

12

320

800

36

2700

≥90

110

12

320

800

36

6000

≥90

130


Product dimensions

  CK1611-SV4

White bins on CIE-1931

CK1611-SV4

Temperature Vs Lume:

CK1611-SV4

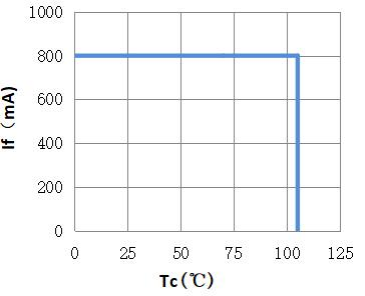

TC VS IF curve:

         CK1611-SV4

                                      CK1611-SV4

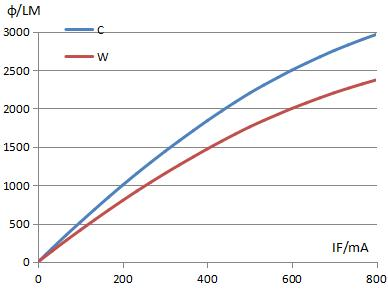

Current Vs Lumen:

         CK1611-SV4

                                         CK1611-SV4

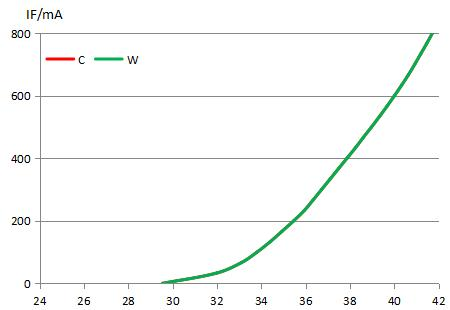

Voltage Vs Current:



       CK1611-SV4

                                      CK1611-SV4
