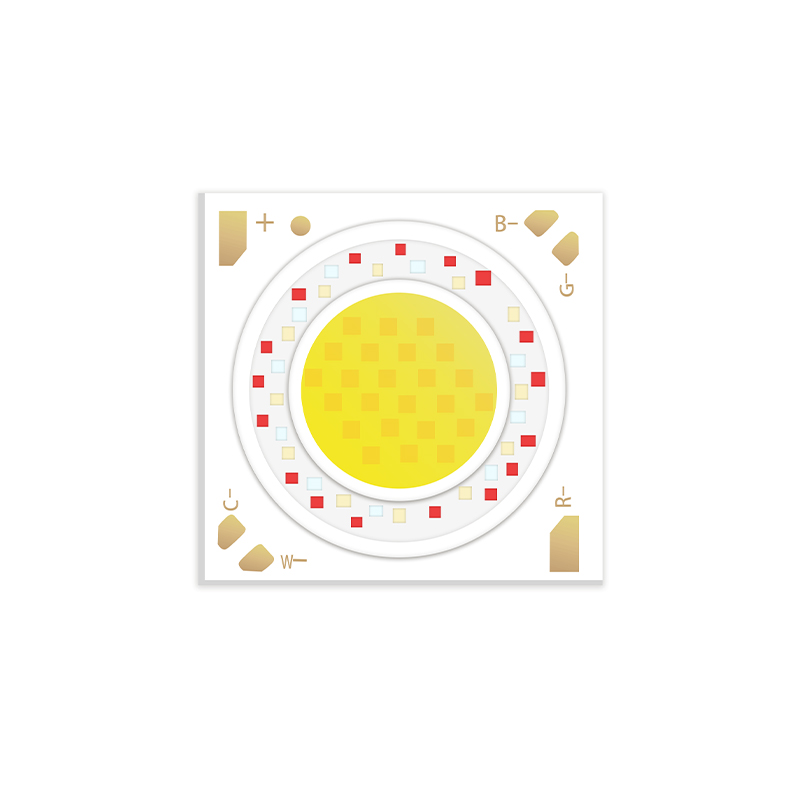

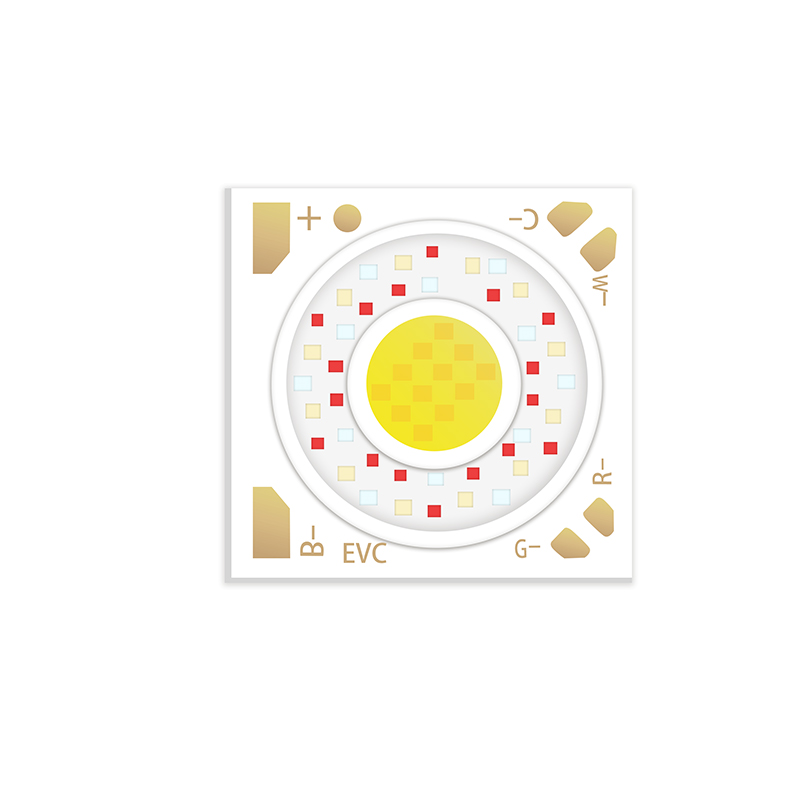

NCW2320
NCW2320
NCW2320
Product Features:
1、CCT tunable range: 1000-20000K
2、Color point fitting along BBL
3、CRI>90
4、Covering the applications of all colors and lights required for both visual and non-visual purposes in nature
5、Adapted with Bluetooth, Zigbee, PLC and other intelligent control (on-off switch, remote control, IPAD/ mobile phone).
Product application:
Widely used for High-end smart homes, spaces for light therapy-assisted applications (psychological counseling rooms, confinement centers, psychotherapy rooms, health care and physiotherapy centers, e
Product Introduction
Related recommendations

Model Number

LES
(mm)

CCT
K)

CRI
Ra)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

Light efficiency
(lm/W)

NCW2320B-
100W-LSH

Φ18

R

/

12

320

400

36

/

G

/

12

320

400

36

/

B

/

12

320

400

36

/

C:6000

≥90

25

700

900

36

105

W:2700

≥90

25

700

900

36

90

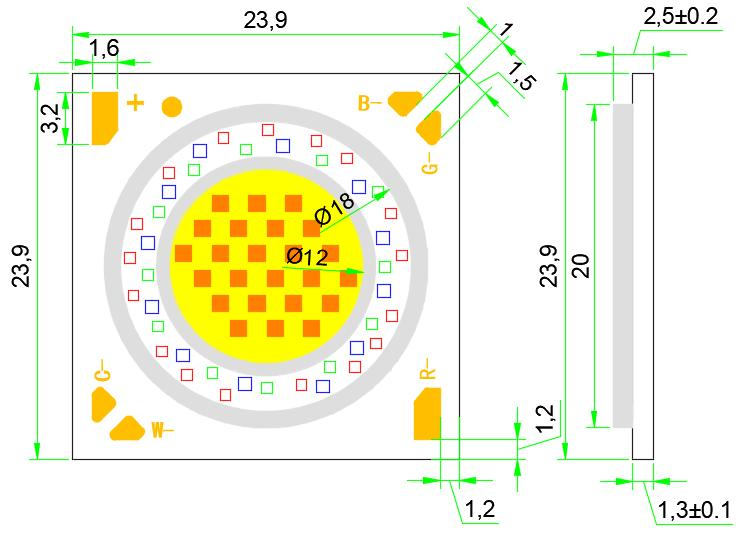

Product dimensions

  NCW2320

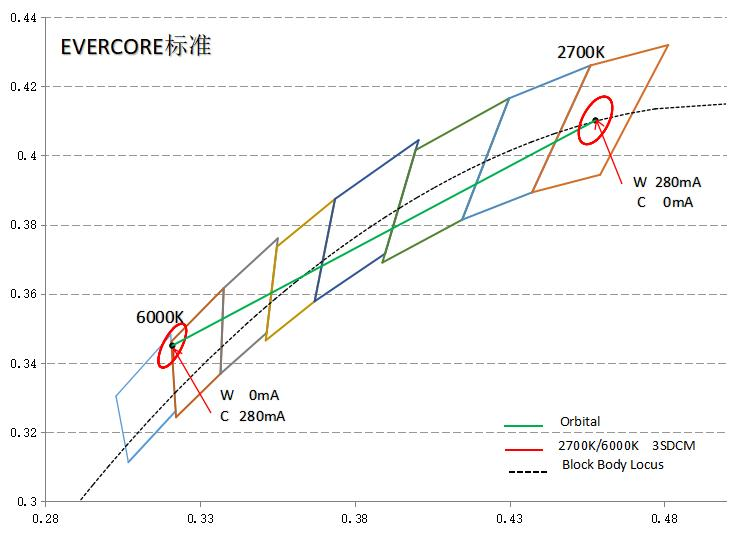

White bins on CIE-1931

NCW2320


Temperature Vs Lume:

NCW2320

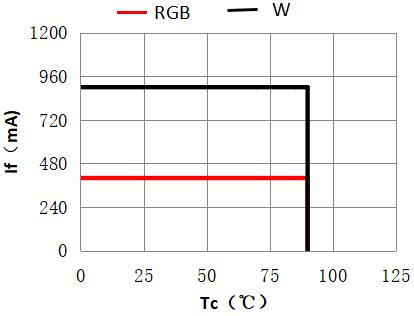

TC VS IF curve:


NCW2320

                                                       NCW2320

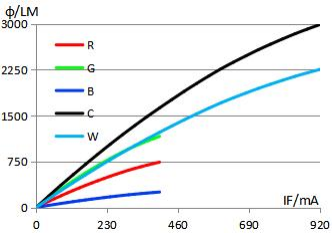

Current Vs Lumen:

         NCW2320

                                          NCW2320

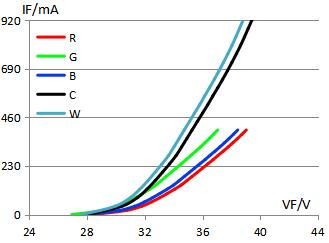

Voltage Vs Current:



          NCW2320

                                       NCW2320
