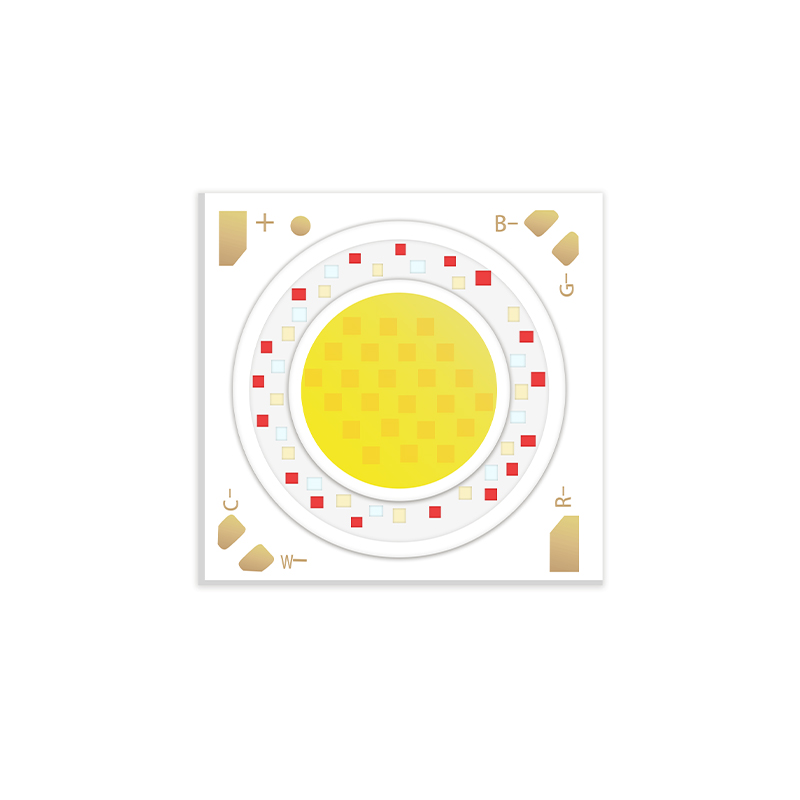

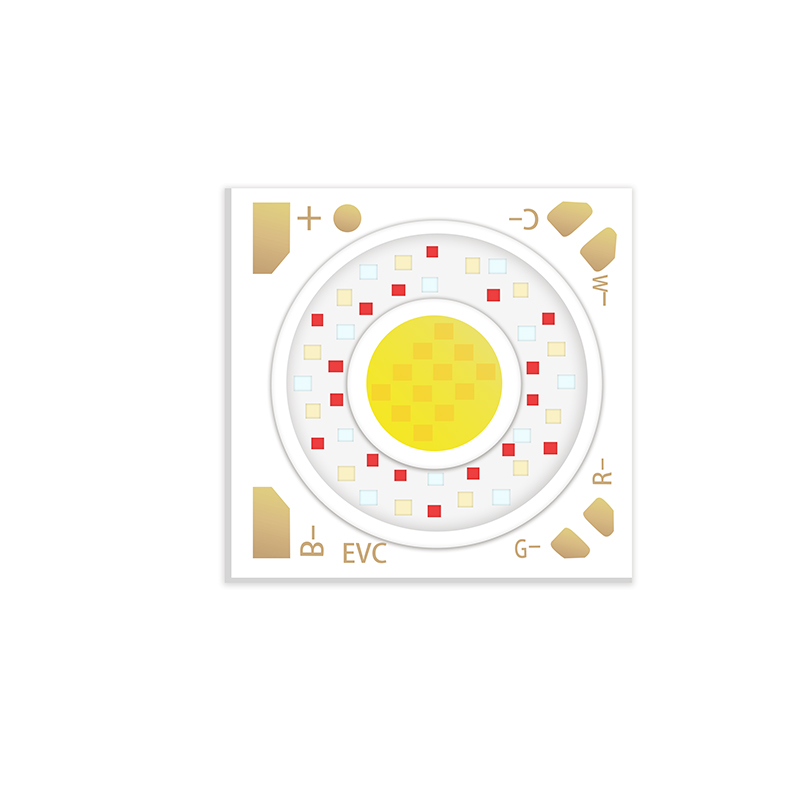

NCW1814
NCW1814
NCW1814
Product Features:
1、CCT tunable range: 1000-20000K
2、Color point fitting along BBL
3、CRI>90
4、Covering the applications of all colors and lights required for both visual and non-visual purposes in nature
5、Adapted with Bluetooth, Zigbee, PLC and other intelligent control (on-off switch, remote control, IPAD/ mobile phone).
Product application:
Widely used for High-end smart homes, spaces for light therapy-assisted applications (psychological counseling rooms, confinement centers, psychotherapy rooms, health care and physiotherapy centers, e
Product Introduction
Related recommendations

Model Number

LES
(mm)

CCT
K)

CRI
Ra)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

Light efficiency
(lm/W)

NCW1814B-
60W-LSH

Φ12

R

/

12

320

400

36

/

G

/

12

320

400

36

/

B

/

12

320

400

36

/

C:6000

≥90

12

320

400

36

100

W:2700

≥90

12

320

400

36

85

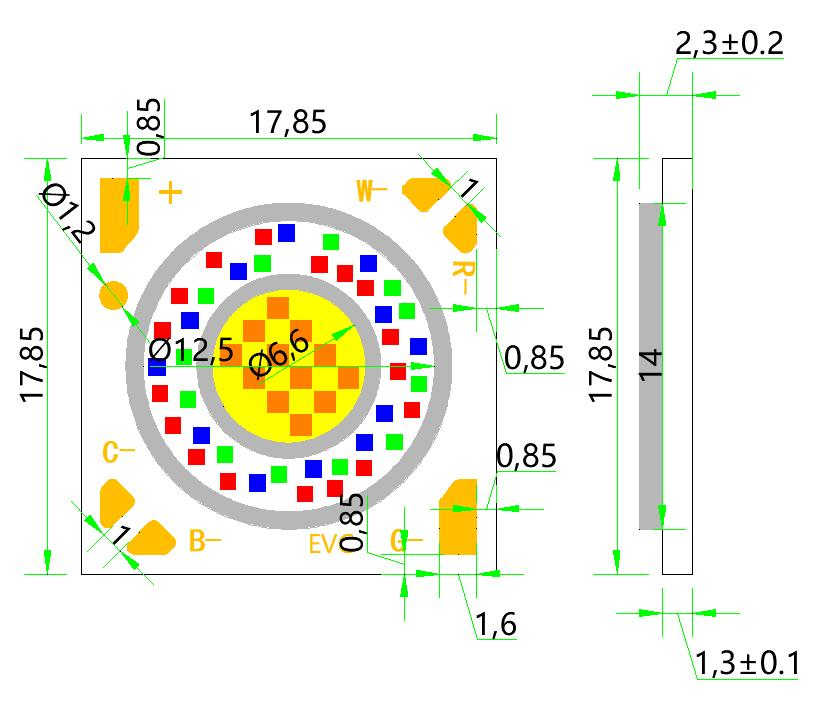

Product dimensions

  NCW1814

White bins on CIE-1931

NCW1814

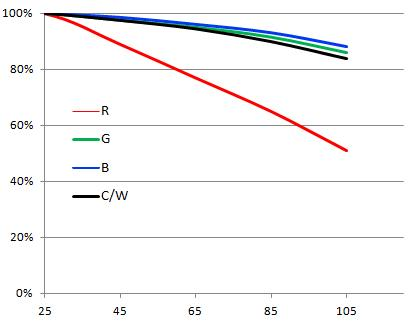

Temperature Vs Lume:

   NCW1814

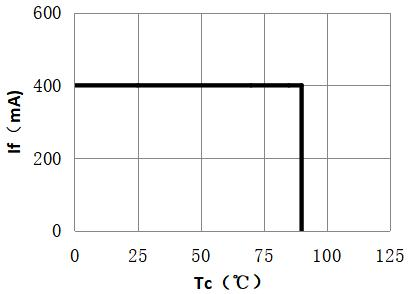

TC VS IF curve:


NCW1814

                                                       NCW1814

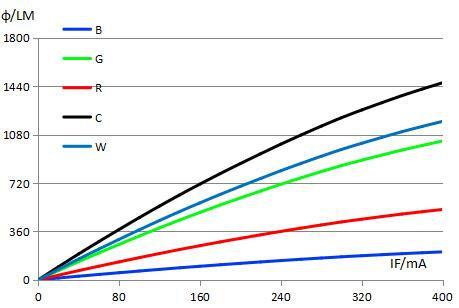

Current Vs Lumen:

      NCW1814

                                          NCW1814

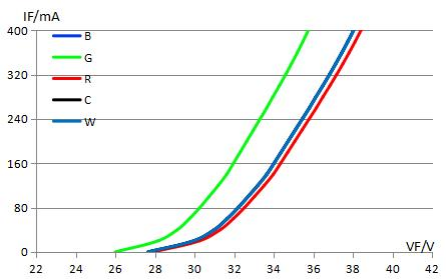

Voltage Vs Current:



          NCW1814

                                       NCW1814
