CK1917-YV3
CK1917-YV3
CK1917-YV3
Product Features:
1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra>90
4、Light efficiency: 120lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment
Product application:
Widely used for high-end hotels, smart homes, high-end commercial space and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT

(K)

CRI
Ra)

Light efficiency
(lm/W)

CK1917-0812

J24WLSH-YV3

Φ15

24

640

800

36

2700

≥90

105

24

640

800

36

6000

≥90

120

CK1917-1212

J36WLSH-YV3

36

960

1200

36

2700

≥90

105

36

960

1200

36

6000

≥90

120

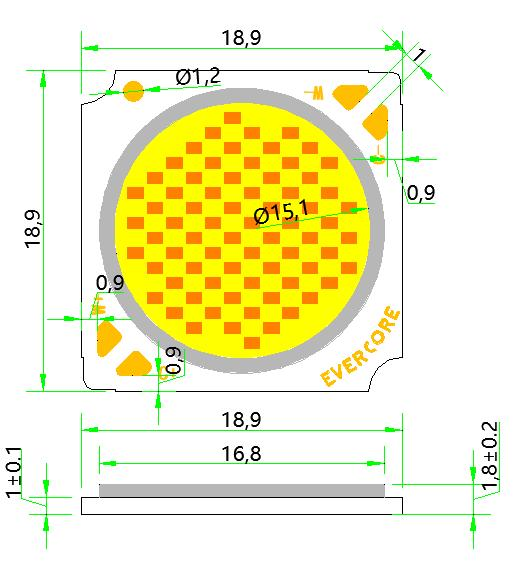

Product dimensions

CK1917-YV3

White bins on CIE-1931

CK1917-YV3

Temperature Vs Lume:

CK1917-YV3

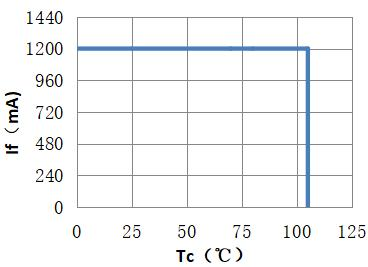

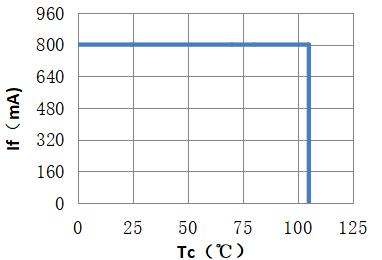

TC VS IF curve:

            CK1917-YV3                    CK1917-YV3

                                         CK1917-0812                                                                               CK1917-1212

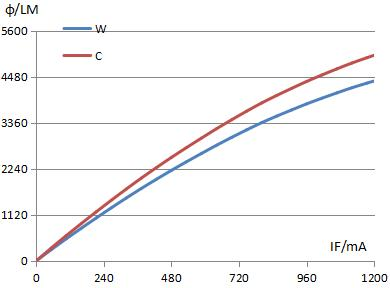

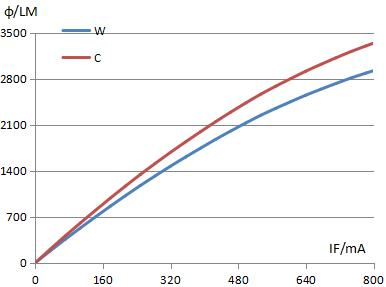

Current Vs Lumen:

         CK1917-YV3                           CK1917-YV3

                                      CK1917-0812                                                                                       CK1917-1212

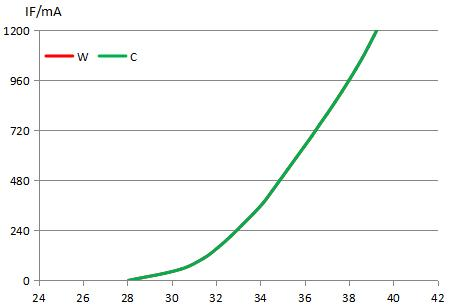

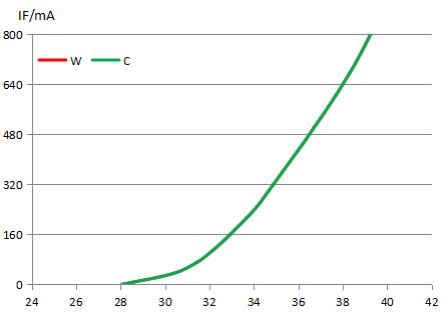

Voltage Vs Current:



       CK1917-YV3                        CK1917-YV3

                                     CK1917-0812                                                                               CK1917-1212
