Home > Products > Multi color temperature COB > Dual Color Temperature Series > Dual Color Temperature Series - Constant Current Edition

CK1308-SV3

Product Features:

1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra＞90
4、Light efficiency: 120lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment

Product application:

Widely used for high-end hotels, smart homes, high-end commercial space and other places

Product Introduction

Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT

(K)

CRI
（Ra）

Light efficiency
(lm/W)

CK1308-0212

J6WLSH-YV3

Φ6

160

200

2700

≥90

105

160

200

6000

≥90

120

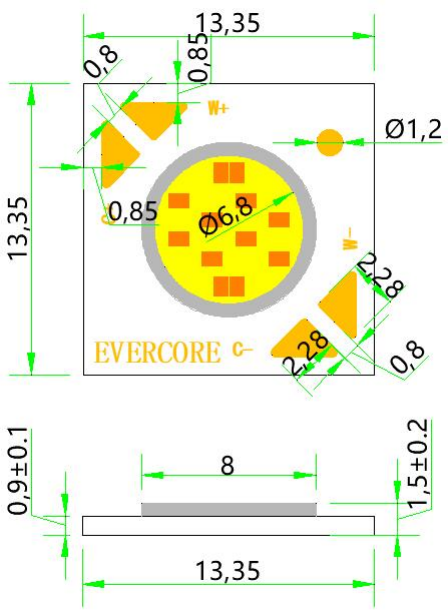

Product dimensions：

CK1308-SV3

White bins on CIE-1931：

CK1308-SV3

Temperature Vs Lume：

CK1308-SV3

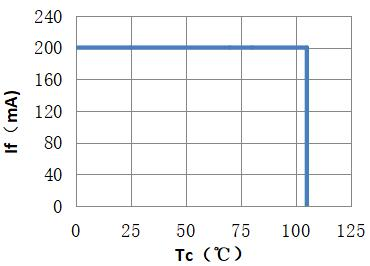

TC VS IF curve：

CK1308-SV3

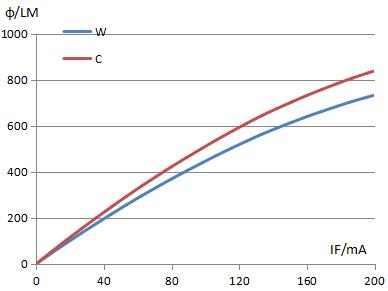

Current Vs Lumen：

CK1308-SV3

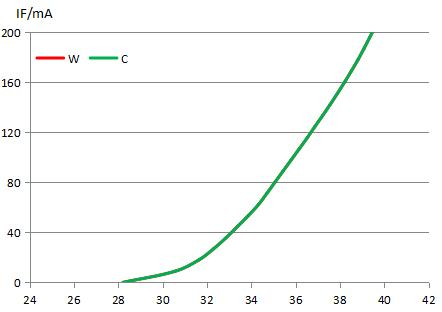

Voltage Vs Current：

CK1308-SV3
