CK1611-SV3
CK1611-SV3
CK1611-SV3
Product Features:
1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra>90
4、Light efficiency: 120lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment
Product application:
Widely used for high-end hotels, smart homes, high-end commercial space and other places
Product Introduction
Related recommendations

Model Number

LES
(mm)

Power
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT

(K)

CRI
Ra)

Light efficiency
(lm/W)

CK1611-0412

J12WLSH-YV3

Φ9

12

320

400

36

2700

≥90

105

12

320

400

36

6000

≥90

120

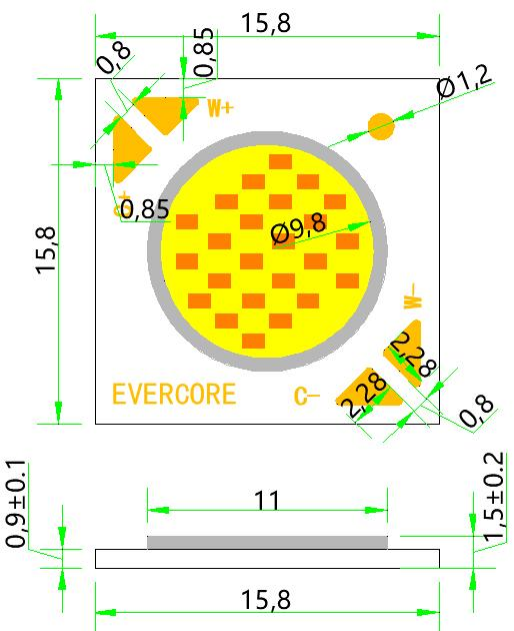

Product dimensions

  CK1611-SV3

White bins on CIE-1931

CK1611-SV3

Temperature Vs Lume:

CK1611-SV3

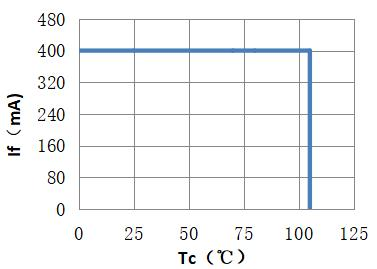

TC VS IF curve:

       CK1611-SV3

                                          CK1611-SV3

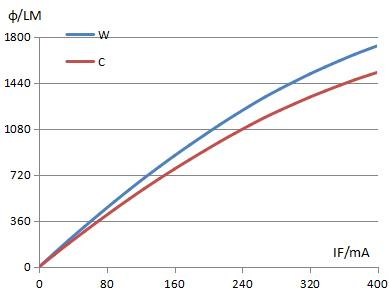

Current Vs Lumen:

         CK1611-SV3

                                         CK1611-SV3

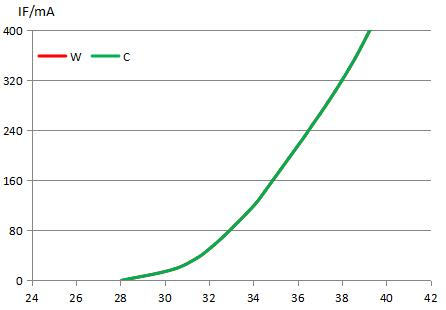

Voltage Vs Current:



       CK1611-SV3

                                      CK1611-SV3
